  • DONGNAM

    72.5kV Gas Insulated Switchgear
    Model
    -
    Series
    Switchgear

    Product Description

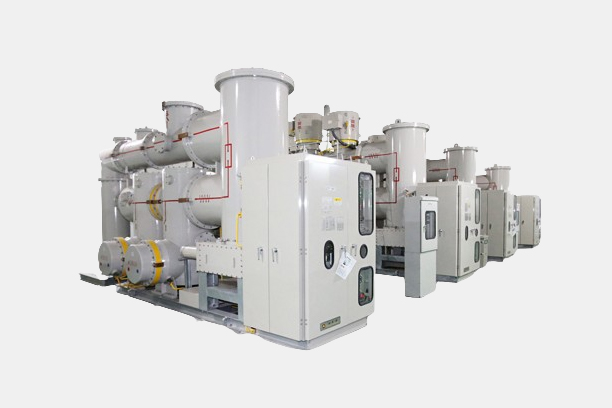

    DONGNAM 72.5kV Gas Insulated Switchgear



    Product Specification

    Name of Product

    72.5kV Gas Insulated Switchgear (GIS)

    Rated Voltage(kV)

    72.5

    Applied Standard GIS

    IEC 60517(1994) / ES 6110-0002(2006)

    CB

    IEC62271-100(2008)

    Rated Current(A)

    2000

    Rated Breaking Current(kA)

    20

    Power Frequency Withstand Voltage(kV) /
    Disconnector with Surge Protection Gap

    140 / 160

    Lightening Impulse Withstand Voltage(kV) /
    Disconnector with Surge Protection Gap

    325 / 375

    Rated SF6 GAS Pressure
    (Mpa.G)

    at cutoff part

    0.50

    et cetera

    0.35

    Circuit Breaker's Service Classification (Class)

    E1 / C2 / M2 / S2

    Control Method

    circuit breaker

    Electric Spring (2phase control)

    disconnector

    Electric (2phase control)

    earthing switch

    Manual (2phase control)
