DK-LOK

DK-LOK

URG2 Series

Model

Series

Regulators(Semiconductor)


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

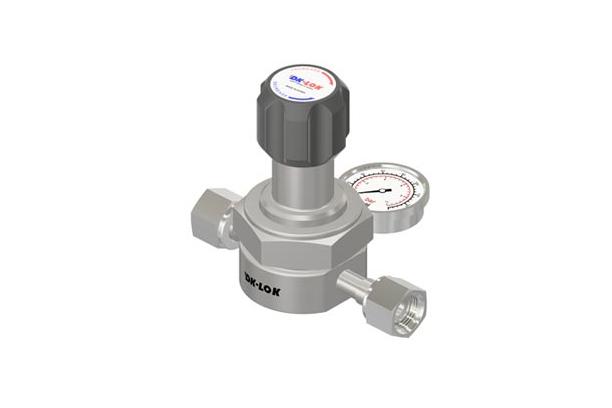

URG2 Series
Ultra High Purity Regulators

Spec.
Pressure
– Inlet: 600psig, 1,000psig 3,500psig (41/69/241 bar)
– Outlet: 0~30 psig, 0~60 psig, 0~100 psig, 0~150 psig (0~2.1 / 0~4.1 / 0~6.8 / 0~10.3 bar)
Material: SS316L, SS316L VAR, HASTELLOY C-22
DCR, TBW Type 1/2″ Size
BA, EP Grade

Brief Description
All Internal surfaces are finished with 10Ra or 5Ra to ensure minimal particle generation & moisture contribution.
DK-Lok’s own electropolished.
Entrapment metal to metal seal provide enhanced leak tight integrity.
Excellent stability of set pressure with accuracy, sensitivity.
Hastelloy C-22 diaphragm material.
PFA / PCTFE / PI seat material with remarkable chemical & thermal resistance.

Download

catalog-dk-lok-URG2 Series
