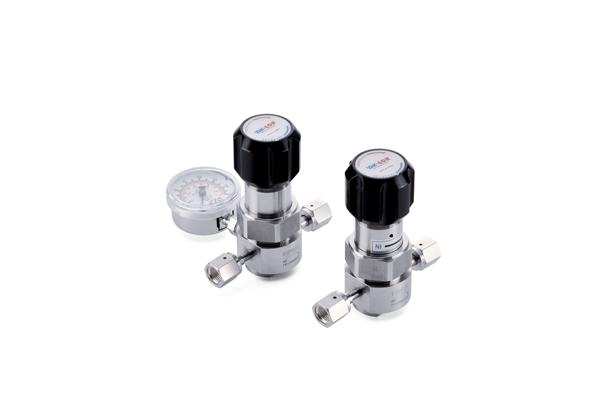

URG1 Series
Ultra High Purity Regulators

Spec.
Pressure
– Inlet: 600psig, 3,500 psig (41/241 bar)
– Outlet: 0~30 psig, 0~60 psig, 0~100 psig, 0~150 psig, 0~250 psig (0~2.1 / 0~4.1 / 0~6.8 / 0~10.3 / 0~17.2 bar)
Material: SS316L, SS316L VAR, HASTELLOY C-22
DCR, TBW Type 1/4″ Size
BA, EP Grade

Brief Description
All Internal surfaces are finished with 10Ra or 5Ra to ensure minimal particle generation & moisture contribution.
DK-Lok’s own electropolished.
Entrapment metal to metal seal provide enhanced leak tight integrity
Excellent stability of set pressure with accuracy, sensitivity.
Hastelloy C-22 diaphragm material.
PCTFE / PI seat material with remarkable chemical & thermal resistance.
