DELTA MACHINE

DELTA MACHINE

Circular Saw

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

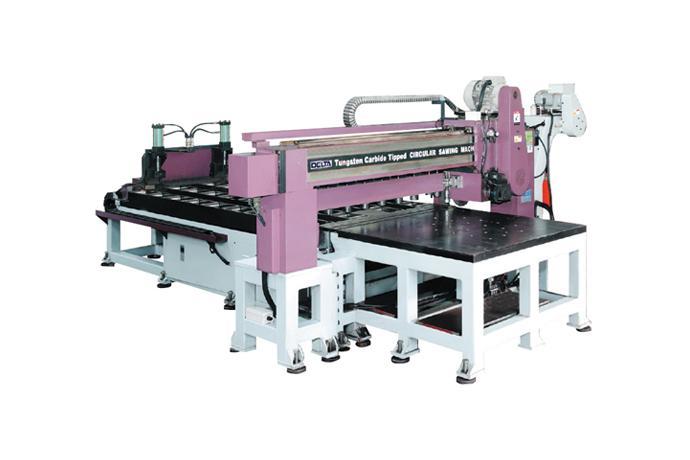

DELTA MACHINE Circular Saw DT-1300A

DELTA MACHINE Circular Saw DT-1300A 1

Features

- Fully automatic high speed cutting by NC control & touch screen
- Precise workpiece feeding by servo motor(option)
- Excellent cutting accuracy by vibration-free spindle
- Easy operation by touch screen method
- Longer blade life by anti backlash air tension brake and misting oil
- Cutting time and work finishing time display
- Error self detecting and their solutions display
- Error self detecting and their solutions display
- Designed for steel plate



Specifications

MODEL

DT-1300A

Operating Method

NC Control & Touch Screen

Cutting Capacity Height

10~50mm

Width

1300mm

Length

80~2500mm

Blade

Size

Ø315×2.2T

Revolution Speed

80~130rpm

Motor Drive

7.5kw

Hydraulic

2.2kw

Sawhead Servo 2kw
Workpiece Feed Servo 2kw
Blade Cooling Compressed Air + Misting Oil
Weight

4,000Kg

Floor Space (W×L×H)

2915×4675×1868mm

* Above design and specification is subject to change without prior notice.
