DELTA MACHINE

DELTA MACHINE

써큘러 쏘

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

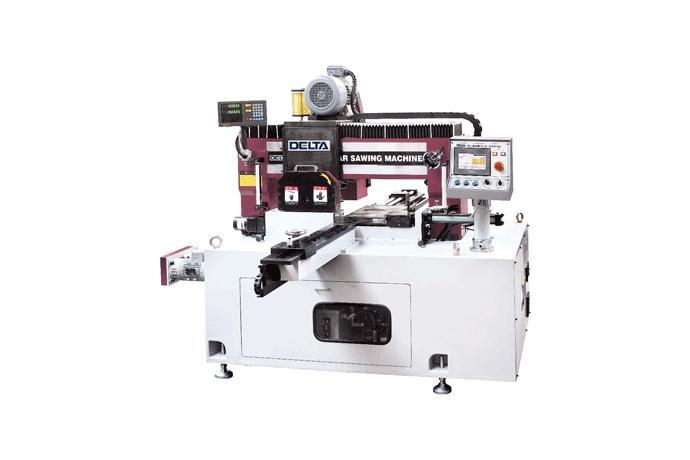

DELTA MACHINE 써큘러 쏘 DT-300M/500M

Features
DELTA MACHINE 써큘러 쏘 DT-300M/500M 1

Fully automatic high speed cutting by NC control & touch screen

DELTA MACHINE 써큘러 쏘 DT-300M/500M 2

Precise workpiece feeding by servo motor(option)

DELTA MACHINE 써큘러 쏘 DT-300M/500M 3

Excellent cutting accuracy by vibration-free spindle

DELTA MACHINE 써큘러 쏘 DT-300M/500M 4

Easy operation by touch screen method

DELTA MACHINE 써큘러 쏘 DT-300M/500M 5

Longer blade life by anti backlash air tension brake and misting oil

DELTA MACHINE 써큘러 쏘 DT-300M/500M 6

Cutting time and work finishing time display

DELTA MACHINE 써큘러 쏘 DT-300M/500M 7

Error self detecting and their solutions display

DELTA MACHINE 써큘러 쏘 DT-300M/500M 8

Saw head parallel slide moving by servo motor

DELTA MACHINE 써큘러 쏘 DT-300M/500M 9

Designed for steel plate

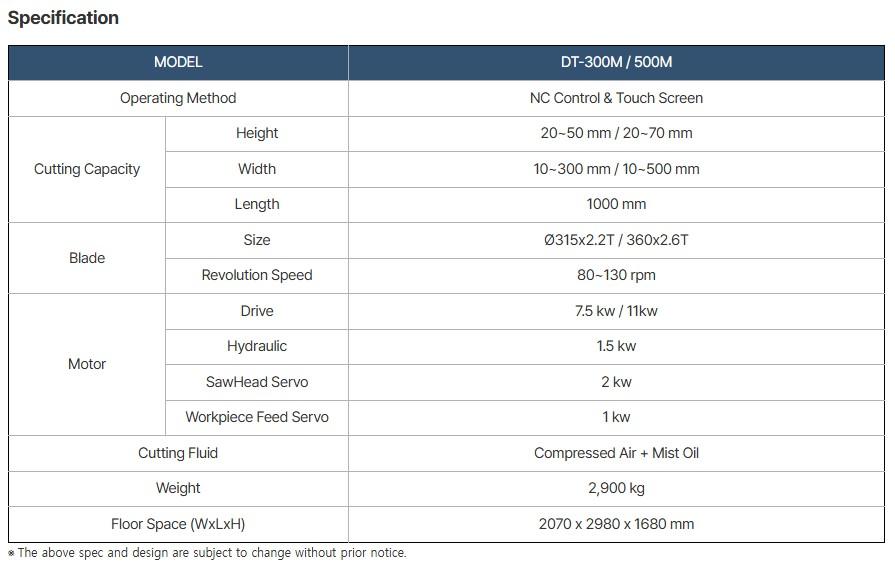

DELTA MACHINE 써큘러 쏘 DT-300M/500M 10 Specifications

MODEL

DT-300A

Operating Method

NC Control & Touch Screen

Cutting Capacity Height

20~50mm/20~70mm

Width

300mm/500mm

Length

1000mm

Blade

Size

Ø285×2.0T/Ø315×2.2T

Revolution Speed

80~130rpm

Motor Drive

7.5kw

Hydraulic

1.5㎾

Sawhead Servo 2kw
Workpiece Feed Servo 2kw
Blade Cooling Compressed Air + Misting Oil
Workpiece Feed Method

AC Servo

Remnant

150mm

Stroke 750mm
Weight

2900Kg

Measurement (W×L×H) 2400×2680×2010mm
