product Image
Circular Saw
Model Name
DT-130
Data
-
Manufacturer information
provider logo
DELTA MACHINE

Sawing machine manufacturer, Ultra high speed band saw, Angle cutting machine, Industrial high speed cutting machine

Problem with product info?
Update request
Manufacturer
DELTA MACHINE
Product Type
Machine
Brand
-
SKU
12747
Product Name
Circular Saw
Model Name
DT-130
Size
-
Weight
-
Product Details

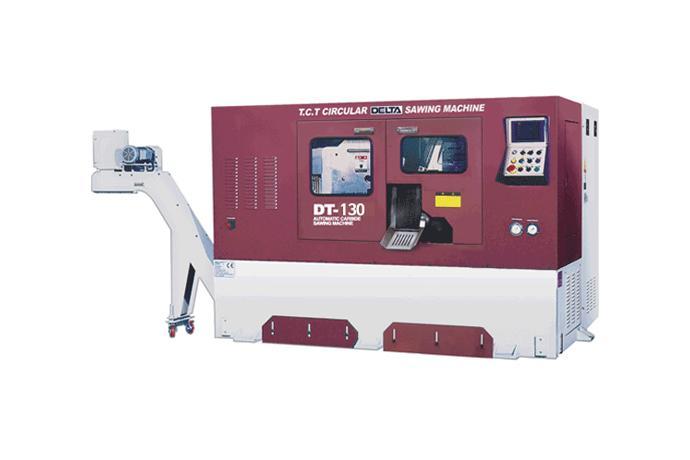

DELTA MACHINE Circular Saw DT-130

DELTA MACHINE Circular Saw DT-130 1

Features

- Fully automatic NC control and touch screen type
- Extension of saw blade life by using high precision reducer
- Precise cutting length by servo motor
- Ten cut off lengths programmable
- Display of error types and their solutions
- Head moving by ball screw
- Suitable for cold forging work
- Material size auto measuring
- Motor driven chip brush unit
- Sawhead servo feeding


Standard Accessaries

- Auto Feeder 6M
- Steel belt type chip conveyor
- Sawhead servo feeding


Optional Accsessaries

- Blade cooling device(cold air gun)
- Mist cleaner
- Workpiece out-auto feeder



Specifications

MODEL

DT-130

Operating Method

NC System & Touch Screen

Saw Blade

Ø420×2.7T / 3.0T

Cutting Capacity

Ø50~130

Max. feed Stroke

750mm

Min. Remnants

70mm

Saw Blad Speed

50~140rpm

Motor

Drive

15.0kw

Hydraulic System

2.2kw

Feed System

A/C Servo Motor

Saw Cooling

Compressed Air and Misting Oil

Weight

5,200kg

Floor Space (W×H×L)

2940×1900×6750mm
