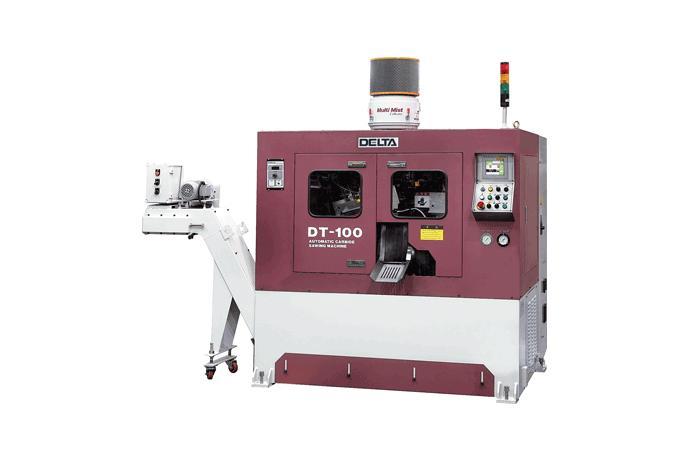

DT-100 +Auto Feeder
Features
- Fully automatic NC control and touch screen type
- Extension of saw blade life by using high precision reducer
- Precise cutting length by servo motor
- Ten cut off lengths programmable
- Display of error types and their solutions
- Head moving by ball screw
- Suitable for cold forging work
- Material size auto measuring
- Motor driven chip brush unit
- Sawhead servo feeding
Standard Accessaries
- Auto Feeder 6M
- Steel belt type chip conveyor
- Sawhead servo feeding
Optional Accsessaries
- Blade cooling device(cold air gun)
- Mist cleaner
- Workpiece out-auto feeder
Specifications
|
MODEL |
DT-100 |
|
|
Operating Method |
NC System & Touch Screen |
|
|
Saw Blade |
Ø360×2.6T |
|
|
Cutting Capacity |
Ø20~100 |
|
|
Max. feed Stroke |
720mm |
|
|
Min. Remnants |
50mm |
|
|
Saw Blad Speed |
70~160rpm |
|
|
Motor |
Drive |
11.0kw |
|
Hydraulic System |
2.2kw |
|
|
Feed System |
A/C Servo Motor |
|
|
Saw Cooling |
Compressed Air and Misting Oil | |
|
Weight |
3,800kg |
|
|
Floor Space (W×H×L) |
2180×1720×6250mm |
|
