DELTA MACHINE

DELTA MACHINE

Circular Saw

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

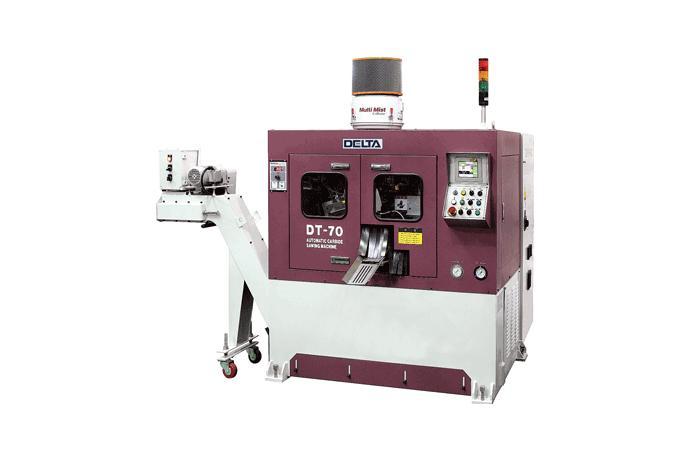

DT-70 + Auto Feeder

DELTA MACHINE Circular Saw DT-70

DELTA MACHINE Circular Saw DT-70 1

Features

- Fully automatic NC control and touch screen type
- Extension of saw blade life by using high precision reducer
- Precise cutting length by servo motor
- Ten cut off lengths programmable
- Display of error types and their solutions
- Head moving by ball screw
- Suitable for cold forging work
- Material size auto measuring
- Motor driven chip brush unit
- Sawhead servo feeding


Standard Accessaries

- Auto feeder(6M)
- Screw typed automatic chip conveyor


Optional Accsessaries

- Steel belt typed automatic chip conveyor
- Mist cleaner
- Material unloading device



Specifications

MODEL

DT-70

Operating Method

NC System & Touch Screen

Saw Blade

Ø285×2.0T

Cutting Capacity

Ø15~70

Max. feed Stroke

670mm

Min. Remnants

30mm

Saw Blad Speed

40~160rpm

Motor

Drive

7.5kw

Hydraulic System

2.2kw

Feed System

A/C Servo Motor

Saw Cooling

Compressed Air and Misting Oil

Weight

3000kg

Floor Space (W×H×L)

1900×1510×6250mm
