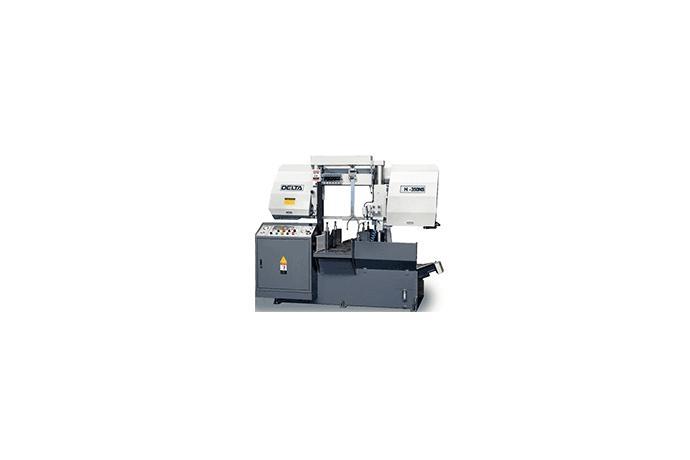

product Image

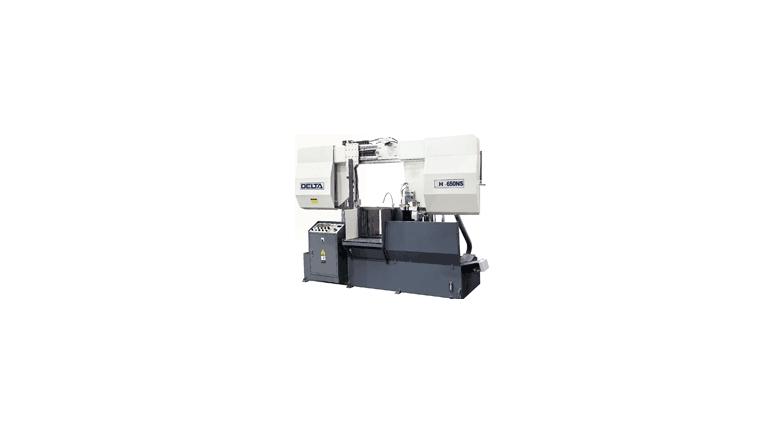

product Image
product Image
H-Series - Middle/Small Size
Model Name
H-Series
Data
-
Manufacturer information
provider logo
DELTA MACHINE

Sawing machine manufacturer, Ultra high speed band saw, Angle cutting machine, Industrial high speed cutting machine

Problem with product info?
Update request
Manufacturer
DELTA MACHINE
Product Type
Machine
Brand
-
SKU
12723
Product Name
H-Series - Middle/Small Size
Model Name
H-Series
Size
-
Weight
-
Product Details

DELTA MACHINE H-Series - Middle/Small Size H-Series

Featuresย

- Semi auto and PLCย
- Infinitely variable blade speed by inverterย
- High precision reducerย
- robust body structureย
- Hydraulic blade tensionย
- Auto moving blade guide armย
- LED work light ย


Standard Accessariesย

- Tool(1set)
- Saw blade(One)
- Instruction manual(Part1)
- Chipukon Bear
- Infinitely
- Vice upper(1Trillion) ย


Optional Accsessariesย

- Vice Clamping power reducing valve
- Roller Table 2M
- Inclined cutting detection device

ย

Specifications

Model HFA-350NS HFA-450NS HFA-520NS HFA-560NS HFA-650NS
Control Method Semi Automatic & NC System
Cutting
Capacity
Round 10~350mm 15~450mm 20~520mm 20~560mm 20~650mm
Square 350ร—350mm 450ร—450mm 520ร—520mm 610ร—560mm 650ร—650mm
Bundle 250ร—140mm 350ร—200mm 400ร—230mm 500ร—230mm 500ร—250mm
Saw Blade Speed 15~115m/min 15~115m/min 15~115m/min 15~115m/min 15~115m/min
Size(Lร—Wร—T) 3980ร—34ร—1.1mm 4880ร—41ร—1.3mm 5800ร—41ร—1.3mm 6700ร—54ร—1.6mm 7530ร—54ร—1.6mm
Tension Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Motor Band Drive 4kw 5.5kw 7.5kw 7.5kw 7.5kw
Hydraulic System 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw
Coolant Pump 0.1kw 0.1kw 0.1kw 0.1kw 0.1kw
Tank
Capacity
Hydraulic 50โ„“ 60โ„“ 70โ„“ 100โ„“ 100โ„“
Cutting Fluid 60โ„“ 80โ„“ 100โ„“ 70โ„“ 70โ„“
Weight 1,800kg 2,700kg 3,200kg 3,500kg 3,800kg
Floor Space (Wร—Lร—H) 2150ร—1100ร—1650mm 2400ร—1190ร—1900mm 2800ร—1210ร—2010mm 3035ร—1290ร—2160mm 3520ร—1310ร—2480mm
