DELTA MACHINE

DELTA MACHINE

Angle Cutting Machine

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

- Fully automatic NC control and touch screen
- Display blade speed, cutting length and angle on the screen
- Easy and exact angle control by encoder
- Inverter controlled variable blade speed
- Accurate angle cutting by twin post type
- Self diagnosis system & input and output monitering
- Good for miter cutting of large H-beam



Specifications

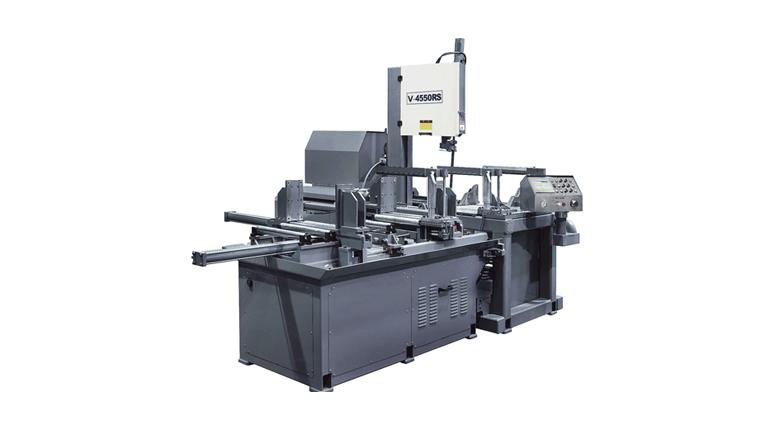

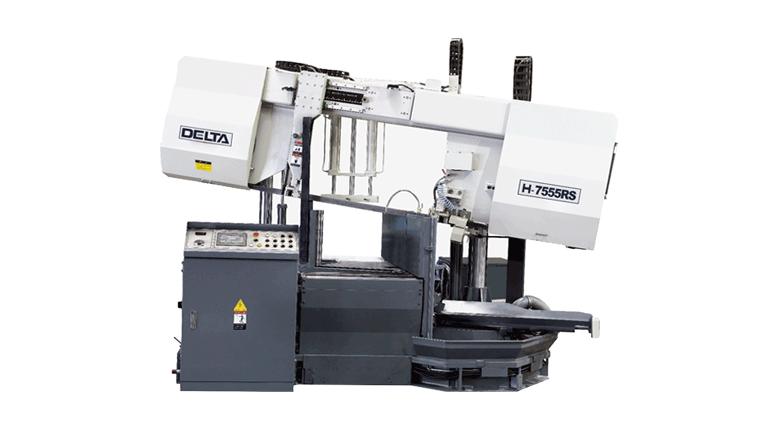

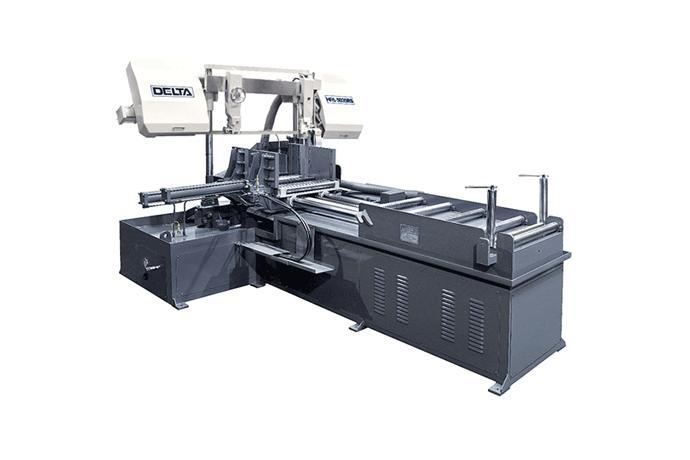

Model HFA-5035RS HFA-6042RS H-7555RS V-4550RS
Control Method Fully Automatic & NC System Fully Automatic & NC System Semi Automatic & NC System Fully Automatic & NC System
Cutting
Capacity
Angle 0。 45。 0。 45。 0。 45。 0。 ±45。
Round Ø350 Ø320 Ø450 Ø400 Ø550 Ø520 Ø460 Ø340
Square 500×350mm 320×350mm 600×420mm 400×420mm 770×550mm 520×550mm 460×500mm 50×300mm
Blade Size 4570×34×1.1mm 5500×41×1.3mm 8100×54×1.6mm 4880×34×1.1mm
Speed 15~115m/min 15~115m/min 15~115m/min 15~115m/min
Motor Drive 4kw 5.5kw 7.5kw 4kw
Hydraulic 1.5kw 1.5kw 2.2kw 1.5kw
Tank
Capacity
Cutting Fluid 0.1kw 0.1kw 0.1kw 0.1kw
Hydraulic 50ℓ 60ℓ 100ℓ 80ℓ
Cutting Fluid 80ℓ 100ℓ 80ℓ 100ℓ
Stroke 1000mm 1000mm NA 1020mm
Weight 2,500kg 3,500kg 6,500kg 2,500kg
Floor Space (W×L×H) 2350×3550×2030mm 2950×3750×2450mm 3800×2230×2370mm 3000×3950×2650mm
