DAGATRONICS

DAGATRONICS

Auto Strainer (Z.K.F)

Model

Series

Medical Device


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

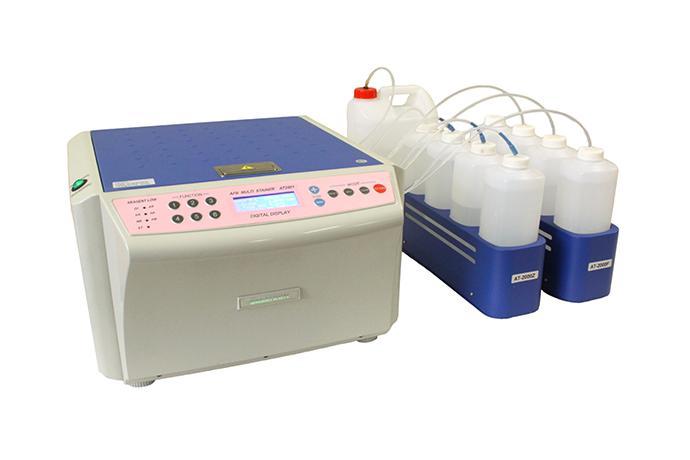

DAGATRONICS Auto Strainer (Z.K.F) AT-3001



AT-3001 AFB Multi Stainer(3 in 1)
  Ziehl-Neelsen  Kinyoun  Fluorescence
Staining method  Selectable Ziehl-Neelsen, Kinyoun and Fluorescence
Slide Try Capacity  1 ~ 10  1 ~ 10 1 ~ 20(with Option)
Tray Rotation Speed  Approx, 200RPM
Display  4 Line by 20 character alpha-numeric LCD dot-matrix
Key Button Controls  6 Mode Key(Stain, Prime, Clean, Dry, Reset, Slide up/down)  6 Function Key(Time setting, Prime)
Used Reagent /  Consumption(Typical)  Carbol Funhsin :
  1.2ml~1.8ml

  HCI Alcohol :
  1.2ml ~ 1.8ml

  Methylene blue :
  1.2ml ~ 1.8ml
Carbol Funhsin :
1.2ml ~ 1.8ml

HCI Alcohol :
1.2ml ~ 1.8ml  Methylene blue :
1.2ml ~ 1.8ml
Auramine/Rhodamine
1.2ml ~ 1.8ml  HCI Alcohol
1.2ml ~ 1.8ml  Potassium Permanganate
1.2ml ~ 1.8ml
1 Cycle Stain time
Typical)
10 slides: 18 min.  10 slides: 20 min. 20 slides: 18 min.
(Option)
Dimensions  480(W) x 445(D) x 265(H)mm. Clearance Height(Lid open): Max. 565mm
Weight  Approx. 20 kgs
Electrical Requirements  100~240VAC~(Auto selection)@50 to 60 Hz
Power Consumption  Max.50 Watts
Drain Connection  Nipple on rear Panel
Safety  Lid interlock : Lid must be closed, and is locked down during operation
Standard Accessies  1L Reagent Bottle(1set), 5L Water bottle(1), Reagent Container(1)  Reagent Container cable(1), Power cord(1), Drain hose(1)  Reagent connection Tube(1 set), User's manual(1)  Quick installation and user's guide(1), Spare fuse(1), Carbon filer(5)
Optional Accessaries  Additional slide tray for 10slides-Fluorescence only
