DAEYANG INSTRUMENT

DAEYANG INSTRUMENT

Weather Information System

Model

Series

Weather Surveillance System


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

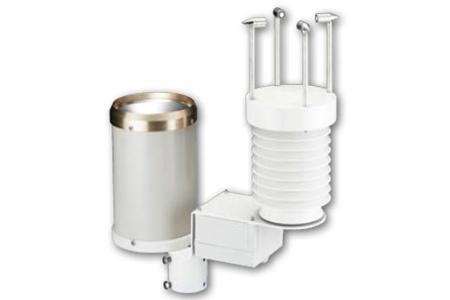

Weather Information System

Measurable information : Wind Speed & Direction, Temperature, Pressure, Humidity, Rainfall.



WIS-200

Wind speed, Wind Direction, Temperature, Barometric pressure, Relative humidity, Rainfall (option)





OUTPUT

RS422/RS232

Output rate : 1sec

Unit : m/s

Serial output format : Daeyang protocol

Serial output baud rate : 2400, 4800, 9600, 19200 or 38400 (Default : 9600)



POWER

Power requirements : 24Vdc (±20%) 4A



SPECIFICATION

Wind Speed range : 0~75m/s

Wind Speed accuracy : ±3%

Wind direction range : 0~360º

Wind direction accuracy : ±3º

Temperature range : -40~60℃

Temperature accuracy : ±0.3℃

Barometric pressure range : 600 ~ 1100hP

Barometric pressure accuracy : ±0.5hP

Relative humidity range : 0~100%RH

Relative humidity accuracy : ±3%RH

Rainfall range (Option) : 0~250mm/h

Rainfall accuracy : ±5%



ENVIRONMENTAL

Operating temperature range : -40℃ to +70℃

Storage temperature range : -50℃ to + 80℃





Data Output Protocol

* Weather Information System Prpotocol
$DEWMS,xxx.xx,R,xx.xx,M,A,H,xxx.x,T,sxxx,x,B,xxxx,x*[CS]<CR><LF>

* Rainfall Protocol
$RAINxxx.xMM*[CS]<CR><LF>
