DAEYANG INSTRUMENT

DAEYANG INSTRUMENT

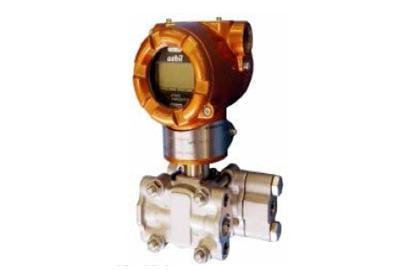

Pressure Sensor

Model

Series

Pressure Sensor


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

TYPE MODEL Measuring Span Setting Range Working Pressure Range
Absolute Pressure GTX 30A 4 ~104kPa A
(30 ~ 780mmHg A)
0 ~ 104kPa A
(30 ~ 780mmHg A)
0.01 ~ 104kPa A
(0.1 ~ 780mmHg A)
GTX 60A 35 ~ 3500kPa A
(0.35 ~ 35kgf/cm² A)
0 ~ 3500kPa A
(0 ~ 35kgf//cm² A)
0.01 ~ 3500kPa A
(0.1mmHg A ~ 35kgf/cm² A)
Gauge Pressure GTX 60G 35 ~ 3500kPa
(0.35 ~ 35kgf/cm²)
-100 ~ 3500kPa
(-1 ~ 35kgf/cm²)
2.0 ~ 3500kPa
(15mmHg A ~35kgf/cm²)
GTX 71G 0.7 ~ 14MPa
(7 ~ 140kgf/cm²)
-0.1 ~ 14MPa
(-1 ~ 140kgf/cm²)
2.0kPa ~ 14MPa
(15mmHg A ~ 140kgf/cm²)
GTX 82G 0.7 ~ 42MPa
(7 ~ 420kgf/cm²)
-100 ~ 42MPa
(-1 ~ 420kgf/cm²)
2.0kPa ~ 42MPa
(15mmHg A ~ 420kgf/cm²)
Differential Pressure GTX 30D 0.75 ~ 100kPa
(75 ~ 10160mmH₂O)
-100 ~ 100kPA
(-10160 ~ 10160mmH₂O)

2.0kPa A ~ 14MPa
(15mmHg A ~ 140kgf/cm²)

GTX 40D 35 ~ 700kPa
(0.35 ~ 7kfg/cm²)
-100 ~ 700kPa
(-1 ~ 7kgf/cm²)
GTX 71D 0.25 ~ 14MPa
(2.5 ~ 140kgf/cm²)
-100 ~ 14MPa
( -1 ~140kgf/cm²)

2.0kPa A ~ 14MPa
(15mmHg A ~ 140kgf/cm²)

ㆍYou can easily select the analog or digital transmission format through the smart field communicator







TYPE MODEL   Measuring Span Setting Range
Absolute Pressure E1A 310A M 1.3 ~ 130kPa A
(9.6 ~ 960mmHg A)
0 ~ 130kPa A
(0 ~ 960mmHg A)
A 0.03 ~ 3MPa A
(0.03 ~ 30kgf/cm² A)
0 ~ 3MPa A
(0 ~30kgf/cm² A)
Gauge Pressure E1A 110A A 0.03 ~ 3MPa
(0.35 ~ 3kgf/cm²)
-0.1 ~ 3MPa
(-1 ~ 30kgf/cm²)
B 0.14 ~ 14MPa
(1.4 ~ 140kgf/cm²)
0.1~14MPa
(-1 ~ 140kgf/cm²)
Differential Pressure E1A 110A M 1 ~ 100kPa
(100 ~ 10000mmH₂O)
-100 ~ 100kPa
(-10000 ~ 10000mmH₂O)
H 5 ~ 500kPa
(0.05 ~ 5kgf/cm²)
-500 ~ 500kPa
(-5 ~ 5kgf/cm²)
V 0.14 ~ 14MPa
(1.4 ~ 140kgf/cm²)
-0.5 ~ 14MPa
(-1 ~ 140kgf/cm²)



ㆍYou can easily select the analog or digital transmission format through the smart field communicator
