DAEYANG INSTRUMENT

DAEYANG INSTRUMENT

Thermocouple

Model

Series

Temperature Sensor


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

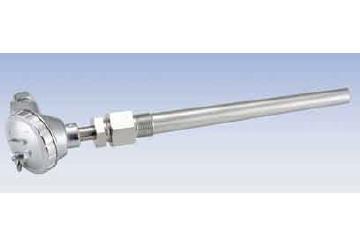

TCA-D(type 1)


Application

For exhaust gas of engine & Boiler steam and high temperature flow object.
Vibration-resistant and shock-resistant position at high temperature.



Features

1. High accuracy

2. Rapid response time

3. High durability against vibration.

4. Easy maintenance.

5. Replaceable internal element at fitting status



Standard Model of Thermocouple

MODEL

Operating Range (℃)

Material of Protecting well

Remark

TCA-D

0~600℃

SUS304

With Amplifier &

Compensation or Extension Cable

- MCA-D must be used with amplifier and compensation or extension cable


L

ØD1

ØDo/D

S

e

80, 100, 120, 150

12

23/17

Standard : PF 3/4

Option : PF 1/2, M33, M20 etc

25

180, 200, 250, 300

15

23/20

Above 300

15

22

* Operating Range : 0 ~ 600℃    -TCA-S : without protecting well



Tolerance of Thermocouple (Type K)

Operating Temperture (℃)

Class

Toleranc (℃)

-40~375

1

±1.5

375~1000

±0.004 ㅣtㅣ

-40~333

2

±2.5

333~1200

±0.075ㅣtㅣ







TCA-D(type 2)

Application
Use for Cylinder Liner


Features

1. Excellent measurement Accuracy
2. Rapid response speed.
3. High durability against vibrations.
4. Maintenance and checks are easy.


- Operating Range : 0~600℃
- CLASS : 2





TCA-D(type 3)

Application
Use for Cylinder Liner


Features
1. Excellent measurement Accuracy
2. Rapid response speed.
3. High durability against vibrations.
4. Maintenance and checks are easy.


- Operating Range : 0~600℃
- CLASS : 2
