DAEYANG INSTRUMENT

DAEYANG INSTRUMENT

RTD Sensor

Model

Series

Temperature Sensor


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

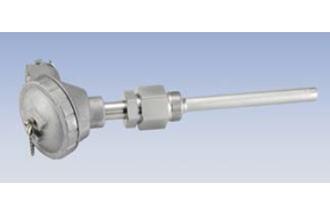

TTR-LN(type 1)


Application

For cooling fresh water, lubrication oil, fuel oil, cooling sea water temperature and low temperature flow object.


Features

1. High accuracy
2. Rapid response time
3. High durability against vibration.
4. Easy maintenance
5. Replaceable internal element at fitting status



L

ØD

S

e

80, 100, 120, 150

12

Standard : PF 3/4

Option : PF 1/2, M33, NPT 3/4 etc

15

200, 250, 300

above 300

13.8

- Operating Range : 0 ~ 200℃






TTR-LN(type 2,flange)


Application

Use for H.F.O Tank


Features

1. Excellent measurement accuracy

2. Rapid response speed.

3. High durability against vibrations.

4. Maintenance and checks are easy

5. The element is replaceable


- Operating Range : 0~200℃

- CLASS : B




Flange Selelction

Flange (JIS TYPE)

Class

PCD

D

DIA of Holes

t

5K25A

75

Ø95

4-Ø12

10

10K25A

90

Ø125

4-Ø19

14

5K40A

95

Ø120

4-Ø15

12

10K40A

105

Ø140

4-Ø19

16






TTR-LN(type 3, flexible )


Application

Use for H.F.O Tank


Features

1. Excellent measurement accuracy

2. Rapid response speed.

3. High durability against vibrations.

4. Maintenance and checks are easy


- Operating Range : 0~200℃

- CLASS : B





Flange Selelction

Flange (JIS TYPE)

Class

PCD

D

DIA of Holes

t

5K25A

75

Ø95

4-Ø12

10

10K25A

90

Ø125

4-Ø19

14

5K40A

95

Ø120

4-Ø15

12

10K40A

105

Ø140

4-Ø19

16
