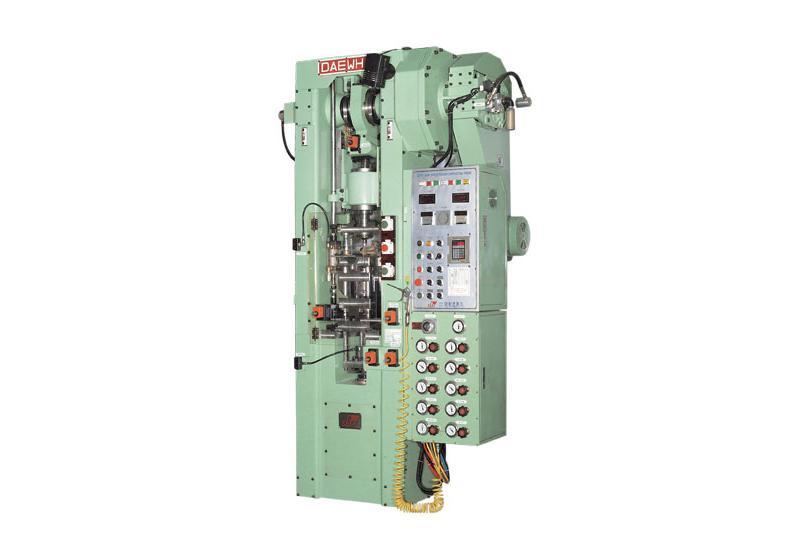

DMC-20HS


• The DMC-20HS is a high speed press with 40m/m filling depth and enlarged compacting range in comparison with other models.
• The drive mechanism at the upper part of the machine provides convenient check and maintenance of the lower part and easy installation of the attachments.
• Forced stopping cam and hydraulic type die floating prevention system to protect the compact from crack and lamination after pressing
• Lower two level die set(pot type) as a basic type ensures good performance and efficiency with easy and various application based on compacts shape and powder characteristics, and lessen the incidental expenses and sophisticated holder of mould.
• Die set rear exchange system to save time when exchanging of die set and to allow an installation of automatic device at the front of the machine.
