DAEKWANG METAL

DAEKWANG METAL

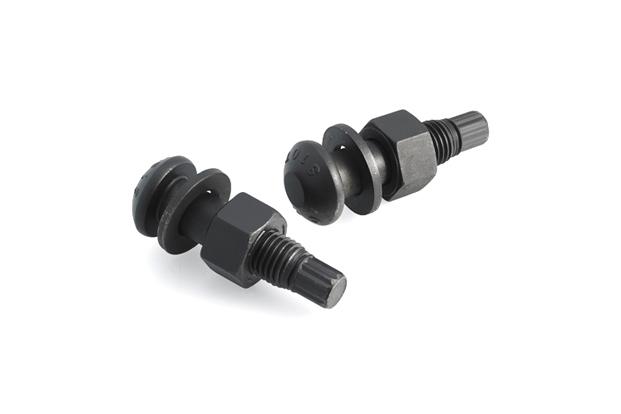

TS bolt (Torque Shear bolt)

Model

Series

V-LOCK Bolt


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description



Unit : mm

Size d1 D D1 H r a-b E h
Basic
dimensions
Tolerance Basic
dimensions
Tolerance Approx Basic
dimensions
Tolerance Approx Dimension Tolerance Approx
M16 16 +0.7
-0.2
+0.8
-0.4
27 ±0.1 26 10 ±0.8 1.6 11.40 ±0.10 15
M20 20 34 33 13 ±0.9 14.20 18
M22 22 38.5 37 14 15.70 19
M24 24 43 31 15 2.0 17.30 20



Size B C d2 X V S a-b E
Basic
dimensions
Tolerance Approx Basic
dimensions
Tolerance Approx Approx Basic
dimensions
Dimension Tolerance Max
M16 16 ±0.3
+0.20
+0.10
13.1 13.6 0
-0.5
2 3 30 +5
0
0.8
M20 20 16.4 17.1 2 3 35 +6
0
0.9
M22 22 17.8 18.9 3 4 40 1.1
M24 24 19.5 20.3 4 4.5 45 1.2
