Description
KS B 1012 (Unit : mm)
| Products | Type | Size | Pitch | H | H1 | B | C (Approx) | D (Approx) | h | D1 (Min) |

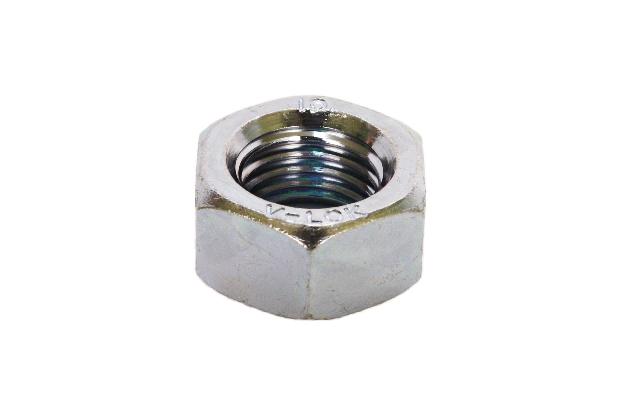

| V-LOCK NUT | Hex
|
M6 | 1 | 5 | 3.6 | 10 | 11.5 | 9.8 | 0.4 | 9.0 |
| M8 | 1.25 | 6.5 | 5 | 13 | 15.0 | 12.5 | 0.4 | 11.7 | ||
| M10 | 1.5 | 8 | 6 | 17 | 19.6 | 16.5 | 0.4 | 15.8 | ||
| M12 | 1.75 | 10 | 7 | 19 | 21.9 | 18 | 0.6 | 17.6 | ||
| M14 | 2 | 11 | 8 | 22 | 25.4 | 21 | 0.6 | 20.4 | ||
| M16 | 2 | 13 | 10 | 24 | 27.7 | 23 | 0.6 | 22.3 | ||
| M18 | 2.5 | 15 | 11 | 27 | 31.2 | 26 | 0.6 | 25.6 | ||
| M20 | 2.5 | 16 | 12 | 30 | 34.6 | 29 | 0.6 | 28.5 | ||
| M22 | 2.5 | 18 | 13 | 32 | 37.0 | 31 | 0.6 | 30.4 | ||
| M24 | 3 | 19 | 14 | 36 | 41.6 | 34 | 0.6 | 34.2 | ||
| M27 | 3 | 22 | 16 | 41 | 47.3 | 39 | – | – | ||
| M30 | 3.5 | 24 | 18 | 46 | 53.1 | 44 | – | – | ||
| M33 | 3.5 | 26 | 20 | 50 | 57.7 | 48 | – | – | ||
| M36 | 4 | 29 | 21 | 55 | 63.5 | 53 | – | – | ||
| M39 | 4 | 31 | 23 | 60 | 69.3 | 57 | – | – | ||
| M42 | 4.5 | 32 | 25 | 65 | 75 | 62 | – | – |
– Material : Stainless steel, Steel, SCM, etc.
– Heat treatment, plating: It varies depending on order specifications.
