DAEHWA ENGINEERING

DAEHWA ENGINEERING

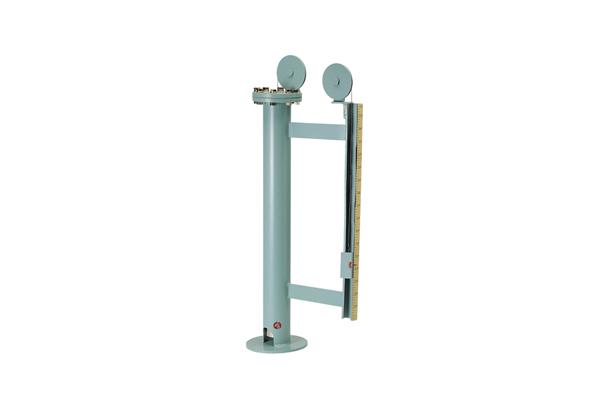

Marine Float Level Gauge

Model

Series

Marine Float Level Gauge


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

General
This float level gauge is used for all kind of oil tanks. it’s good points simple installation and easy maintenance


DFLG - A(JIS F 7217A)                DFLG - B(JIS F 7217B)              DFLG - C(JIS F 7217C)


Contact Composition

ModelMounting TypeNominaldiaApplication
DFLG-FCG-100Direct acting100Removable
DFLG-FCG-150Direct acting150Double bottom
(Lubricating oil,Water)tanks
DFLG-FCG-200Direct acting

200


Standard Model and specifications
ModelCha-mberFloatSheaveSpindleFlangeWire ropeSight glass
DFLG-ASGPSUS304SS400N/ASS400SUS304N/A
DFLG-B-150SGPSUS304SS400N/ASS400SUS304N/A
DFLG-C-200SGPSUS304SS400SUS304SS400N/AHard

Operating Condition
ModelWorking conditionConn. sizeChamber sizeMeasuring renge at Sp.Gr 0.92
PressTemp.
DFLG-A-1003㎏/㎠80°C5K 100A100A3000m/m
DFLG-B-1503㎏/㎠80°C5K 100A150A6000m/m
DFLG-C-2003㎏/㎠80°C5K 100A200A10000m/m

The scale plate for above gauges are optional item
The JIS F 7217 angle valve for DFLG-B is optional item.



DFLG - A(JIS F 7217A)


DFLG - B(JIS F 7217B)


DFLG - C(JIS F 7217C)
