Daehan Electric Machinery

Daehan Electric Machinery

Submersible Mixed-Flow Pump

Model

Series

Pump


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

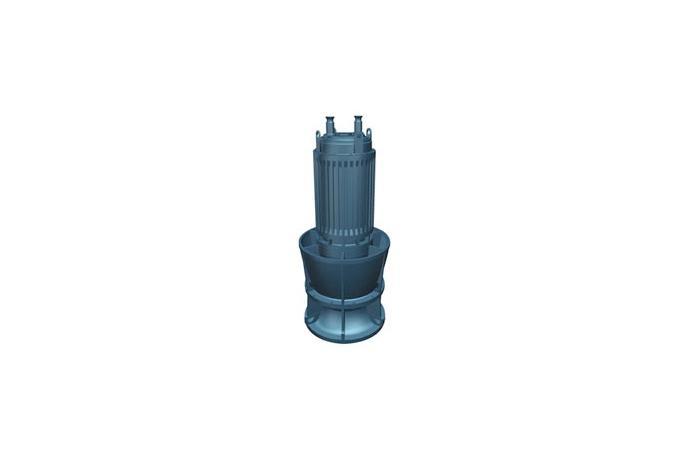

Daehan Electric Machinery Submersible Mixed-Flow Pump DSMF



: :  STRUCTURAL

1) DSMF type pump was designed and manufactured perfectly in the side of structures and efficiency.
2) The flux is a large one but noiseless, especially, available for install at small space thus and so installation cost is diminished.
3) The inlet of cable has been molded-in by triple sealing into one in order to shut off the inundation so was designed the structure.
4) The bearing was made of high-intensity ball bearing Which is available for permanent lubrication and long life span in safe.
5) The motor is built in temperature control and current control type motor protective device, thus and so preventive of accident & damage caused by overload and can be able to continued high-efficiency operation.
6) The mechanical seal is able to guarantee a perfect sealing with duplicated structure of close adhesion, especially, a leakage sensor device is built in the seal chamber so it can be protected the damage of motor and extended its life span
7) The quality of pump impeller has been selected strong anti-corrosive AIBC3 or SSC13 BC6, etc. so that it is guaranteed superior performance under any circumstances



: : FEATURE

1) Submersible mixed-flow DSMF type is an excellent pump, which has large flux with low head. efficiency.
2) The motor pump is mixed with one shaft and a pump which has precise design with an interchangeable structure that is easy to access for maintenance.
3) Especially, with the simplified pump installation space, the cost of pump construction site is diminished and no need for accessory facility.
4) The flux is large one which is noiseless and easiness of installation to any places.
5) Easy to replace with existing pump.



: : USED

1) Agricultural irrigation.
2) Water level controller at dam
3) Flood control and protection against heavy rain.
4) Circulation of cooling water at power plant
5) Sea water pumping and industrial water supply.
6) Water supply and sewer system.
