DAE-BOONG ELECTRIC

DAE-BOONG ELECTRIC

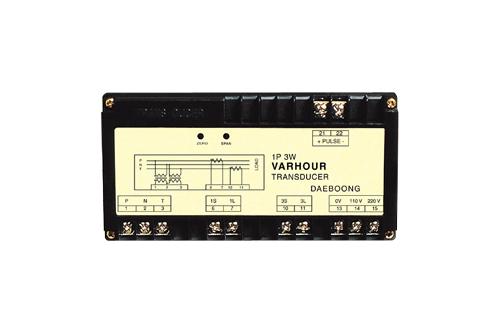

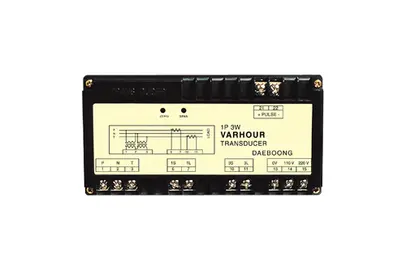

Varhour Transducer

Model

Series

Transducers


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

Standard Product

Model Output Source
DVHT-1BB1 1Pulse / 1VarHour 1Φ 2W
DVHT-2AB1 1Pulse / 1VarHour 1Φ 3W
DVHT-3AB1 1Pulse / 1VarHour 3Φ 3W
DVHT-4CB1 1Pulse / 1VarHour 3Φ 4W



입출력 동작사양



결선방법



Ordering Procedure

1 .Connection

1 : 1Phase 2Wire

2 : 1Phaes 3Wire

3 : 3Phase 3Wire

4 : 3Phase 4Wire



2 .Input(Voltage)

P x W PT ratio CAL.Watt Standard Code
1 x 2 110V 600Var A
220V 1200Var B
1 x 3 110V 1000Var A
3 x 3 220V 2000Var B
380/110V 1158Var E
440/110V 1000Var A
3300/110V 1000Var A
6600/110V 1000Var A
154Kv/110V 1000Var A
22900/110V 961Var G
3 x 4 110/√3 1000Var H
208/√3 2000Var K
380/√3 / 190/√3 2000Var C
380/√3 4000Var L
22900/√3 / 190/√3 1666Var M
190/√3 1500Var X
other other S



3. Input(Current)

A : 1A

B : 5A



4. Output

1 : 1Varhour / 1Pulse

2 : 1Varhour / 10Pulae

3 : 1Kvar / 1Pulse
     when the ordering you must be announced the PT ratio, CT ratio



5. Option

A : Two output(Only Relay Output)
