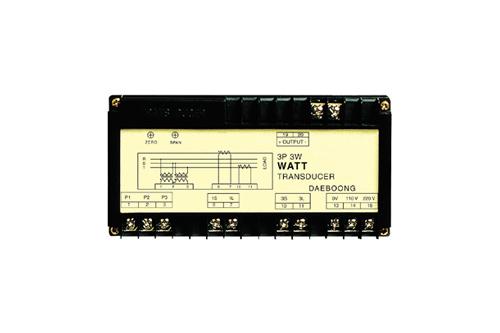

Watt Transducer
Model Name
DWT-1BB1
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134998
Product Name
Watt Transducer
Model Name
DWT-1BB1, DWT-2AB1, DWT-1EB1, DWT-3AB1, DWT-4CB1, DWT-4LB1, DWT-4MB1, DWT-4KB1
Size
-
Weight
-
Product Details
Standard Product
| Model | Output | Source |
| DWT-1BB1 | DC 4~20mA | 1Φ 2W |
| DWT-2AB1 | DC 4~20mA | 1Φ 3W |
| DWT-1EB1 | DC 4~20mA | 3Φ 3W |
| DWT-3AB1 | DC 4~20mA | 3Φ 3W |
| DWT-4CB1 | DC 4~20mA | 3Φ 4W |
| DWT-4LB1 | DC 4~20mA | 3Φ 4W |
| DWT-4MB1 | DC 4~20mA | 3Φ 4W |
| DWT-4KB1 | DC 4~20mA | 3Φ 4W |
Input-Out Curve
Connections
Ordering Procedure
1. Connection
1 : 1Phase 2Wire
2 : 1Phaes 3Wire
3 : 3Phase 3Wire
4 : 3Phase 4Wire
2. Input(Voltage)
| P x W | PT ratio | CAL.Watt Standard | Code |
| 1 x 2 | 110V | 600W | A |
| 220V | 1200W | B | |
| 1 x 3 | 110V | 1000W | A |
| 3 x 3 | 220V | 2000W | B |
| 380/110V | 1158W | E | |
| 440/110V | 1000W | A | |
| 3300/110V | 1000W | A | |
| 6600/110V | 1000W | A | |
| 154Kv/110V | 1000W | A | |
| 22900/110V | 961W | G | |
| 3 x 4 | 110/√3 | 1000W | H |
| 208/√3 | 2000W | K | |
| 380/√3 / 190/√3 | 2000W | C | |
| 380/√3 | 4000W | L | |
| 22900/√3 / 190/√3 | 1666W | M | |
| 190/√3 | 1500W | X | |
| Other | Other | S |
3. Input(Current)
A : 1A
B : 5A
4 .Output
1 : 4~20mA DC
2 : 0~1mA DC
3 : Specify Current (0~20mA max.)
4 : 0~5V DC
5 : 1~5V DC
6 : Specify Voltage(0~10V max.)
