DAE-BOONG ELECTRIC

DAE-BOONG ELECTRIC

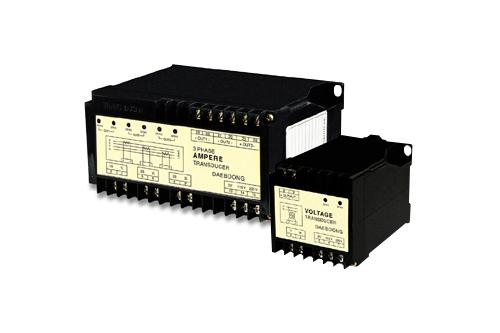

Power Transducer

Model

Series

Transducers


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

Power Transducer is a high accuracy apparatus to transfer the electrical value of AC power system voltage, current, watt, var, power factor, frequency and DC power voltage, currency to DC voltage, currents correspondingly.



Dimension



Output / Load resistance

Output Load Compliance
0~20mA ≤500Ω
4~20mA ≤500Ω
0~1mA ≤10KΩ
1~5V ≥1KΩ
0~10V ≥10KΩ



General Specification

Auxiliary Power supply AC 110/220V(±15%), 50/60HZ <1.5VA
Input burden Less than current 0.5VA, voltage 0.6VA
Input overload Current rated : 1.2 In continuous 2 in 10sec
  Voltage rated : 1.2 Vn continuous 1.5Vn 10sec
Accuracy 0.25% FS(Pn : 0.5%)
Response time 0.4sec(0~90%)
Ripple 0.25% p- pMax
Temp' coefficient 0.015% /℃
Overrange output '-10~120%
Front adjustments Zero(5%)
  Span(10%)
Operating temp 10~55℃
Operating humidity 10~90% RH
Dielectric strength AC 2000V/ min
Insulation resistance 100㏁ or More with DC500V
Surge withstand voltage ≥1.2/ 50usec 5Kv
Frequency 50 or 60Hz



Download

Drawing-Dae Boong Electric-Transducers-Power Transducer
