DAE-A TECH

DAE-A TECH

Vacuum Impregnator

Model

Series

Products


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

* Features

VACUUM IMPREGNATOR

This model is equipment of molding coil & transformers with varnish, in vacuum condition. This model is one unit type, and varnish pot is moved up-down by air hydraulic converter.


* Specifications

MODEL

DVT100

POWER

AC220V, 50/60Hz, 2kW

Vacuum reach

76cmHg

Air pressure

6kgf

Internal capacity

400×560×120(mm)

Attached vacuum pump

220V/60Hz 1Hp
300ℓ/min

Dimension (W*D*H)

1200×800×1100(mm)

Weight

150Kg

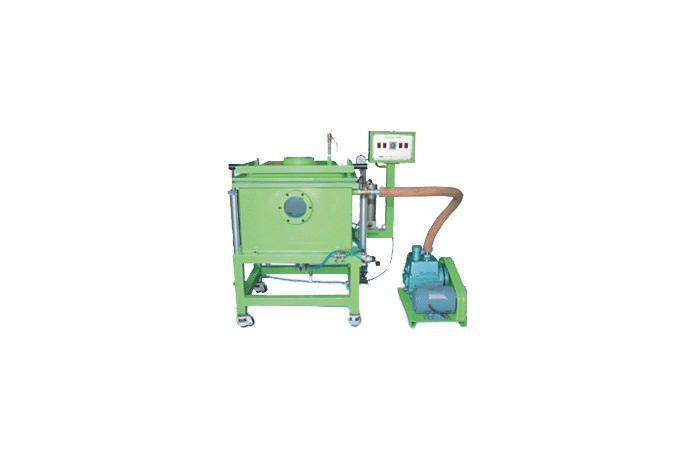

DAE-A TECH Vacuum Impregnator DVT100
