DAE-A TECH

DAE-A TECH

Automatic Power Trans Tester

Model

Series

Products


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

* Features

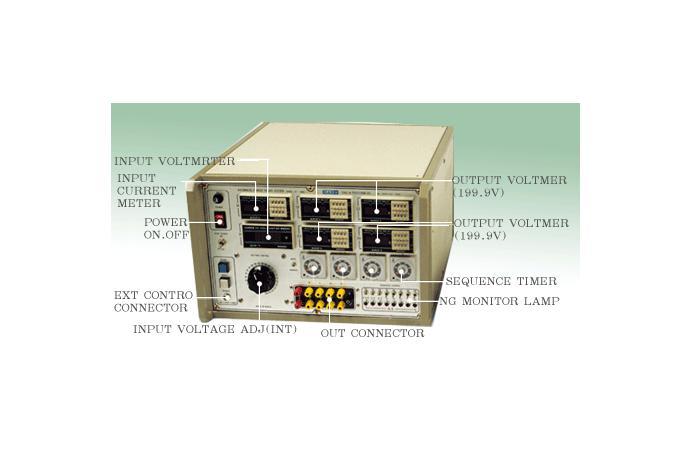

AUTOMATIC POWER TRANS TESTER

This model is equipment for testing transformer of linear power-source. It is possible to judge sequentially this: non load primary current, secondary voltage and internal voltage of P-E.S, E-S, S-S.

(P:primary, S:secondary, E:earth)t.r


* Specifications

MODEL

PT9907

POWER

AC220V, 50/60Hz, 2kW

Test-Power

INT:0-240V (Variable by SLIDAC)
EXT:0-400V (Possible to input )
EXT:0-400V

Input Voltmeter

AC 400V

Input Current Meter

AC 199.9mA or 1.999A

Output Voltmeter

AC 19.99V : 2EA
AC 199.9V : 2EA

Resisting Pressure test

P-E.S, E-S, S-S

Judgement
Mrthod

자동

Dimension
(W*D*H)

430×530×285(mm)

Weight

40Kg

Other

내압시험기(PT-502)외장
