This product is manufactured by
Changshin Machinery MFG
Manufacturer information
Changshin Machinery MFG
Cycloid reducer, agitator and Turn table manufacturer
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
Changshin Machinery MFG
Product Type
Machine
Brand
-
SKU
54603
Product Name

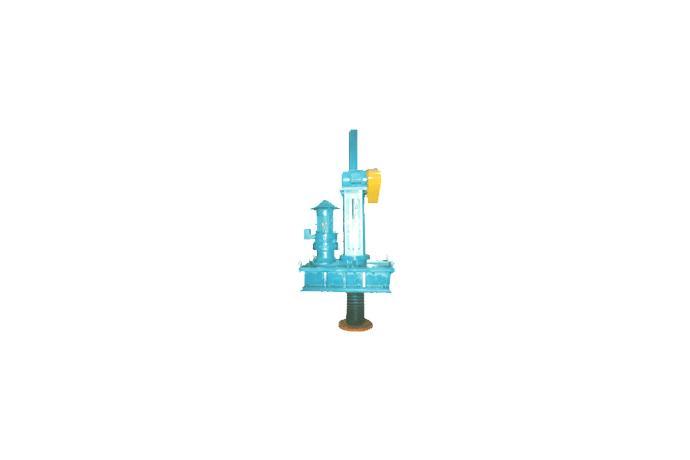

Automatic Lifting Device
Model Name
TU Series
Size
-
Weight
-
Product Details
|
MODEL No. |
HP |
DIMENSION[mm] |
TORQUE [kg-m] |
WEIGHT [kg] |
|||||||||||||||
|
A |
B |
C |
D |
E |
F-ØG |
H |
I |
J |
K-ØL |
M |
N |
O |
P |
Q |
MFV |
||||
|
TU-55-120 |
1 |
998 |
870 |
810 |
270 |
44 |
8-24 |
340 |
270 |
217 |
8-24 |
222 |
22 |
951 |
1150 |
680 |
2 |
830 |
1050 |
|
TU-60-140 |
1 |
998 |
870 |
810 |
270 |
44 |
8-24 |
340 |
270 |
217 |
8-24 |
222 |
22 |
983 |
1150 |
680 |
2 |
1100 |
1100 |
|
TU-70-150 |
2 |
1178 |
990 |
930 |
330 |
44 |
8-26 |
400 |
330 |
268 |
10-24 |
222 |
22 |
1068 |
1150 |
680 |
3 |
1400 |
1570 |
|
TU-80-160 |
2 |
1218 |
990 |
930 |
344 |
43 |
8-26 |
400 |
330 |
268 |
10-24 |
222 |
22 |
1105 |
1150 |
680 |
3 |
1800 |
1680 |
|
TU-85-180 |
2 |
1468 |
1200 |
1140 |
214 |
42 |
14-24 |
450 |
380 |
319 |
12-26 |
240 |
22 |
1105 |
1120 |
680 |
3 |
2800 |
2090 |
|
TU-100-200 |
2 |
1716 |
1430 |
1360 |
255 |
43 |
14-26 |
450 |
380 |
319 |
12-26 |
270 |
22 |
1148 |
1195 |
680 |
3 |
4500 |
3420 |
|
TU-110-230 |
2 |
1970 |
1670 |
1600 |
295 |
50 |
14-26 |
470 |
400 |
319 |
12-26 |
275 |
22 |
1189 |
1070 |
680 |
3 |
6500 |
4970 |
|
TU-120-250 |
3 |
2000 |
1670 |
1600 |
300 |
50 |
14-26 |
510 |
440 |
356 |
12-28 |
275 |
22 |
1249 |
1070 |
680 |
3 |
9100 |
5150 |
