BIONET

BIONET

Electrocardiograph + Spirometer

Model

Series

ECG + Spirometer


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

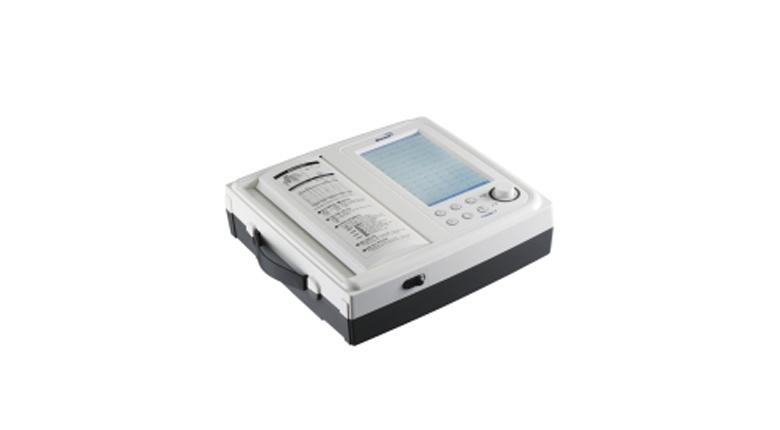

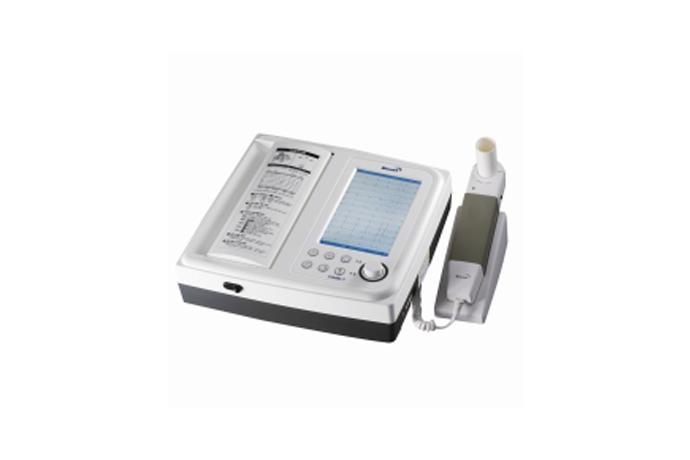

BIONET Electrocardiograph + Spirometer Cardio7-S

[Superior Advantages]

   •   12Ch resting ECG & pulmonary function test

   •   7” wide & clear color TFT LCD screen(800X480) with 12ch preview

   •   Full Touch screen operation

   •   Diagnosis level from adult to pediatric (All ages)

   •   One touch operation for analyzing, storing and printing result within 3 seconds

   •   Long term ECG recording for up to 10 minutes & Automatic arrhythmia detection

   •   USB Barcode Scanner & USB Memory Storage

   •   HRV(Heart Rate variability) Analysis

   •   Compatible with PACS & EMR with BMS-Plus S/W program(Optional)

   •   Pulmonary test with specialized theory(Optional)



* ECG *

User Convenience

  - Lead fault & pacemaker detection

  - Adaptable UI: Portrait & landscape mode

  - QRS sound available

  - Change printing quality & quick printing option

  - Local language available (CHA, ENG, FRE, GER, ITA, POL, POR, ROM, RUS, SPA, TUR)


High-performance Measurement

  - 12Ch resting ECG with 130 kinds diagnosis

  - Accurate interpretation with advanced Minnesota code

  - Beat report for detailed interpretation


Data management

  - Built-in memory for data storage (120 cases) & external USB memory storage

  - Free S/W upgrade by internet

  - Connection to data Management software BMS-Plus

  - Network Setting - Dynamic IP Support



* Spirometer *

User Convenience

  - A4 size chart paper with reference graph

  - No cleaning or sterilization with disposable mouthpiece


High-performance Measurement

  - FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), MVV (Maximum voluntary ventilation) test

  - PRE-POST bronchodilator comparison

  - Diverse formula: Morris/Polgar, Knudson/ITS, ECCS/Quanjer, Perelra, Korea CJK

  - Automatic selection of the best results


Enhanced Data Management

  - Connection to data Management software BMS-Plus

* Ni-MH rechargeable battery allows cordless use for up to 1 hours (approx. 100 printouts)


“This product is medical device, when using this product, please follow the instructions & Operation manual carefully.
“Advertising approval : 2013-I10-03-1214"

Download

Cardio7-S
