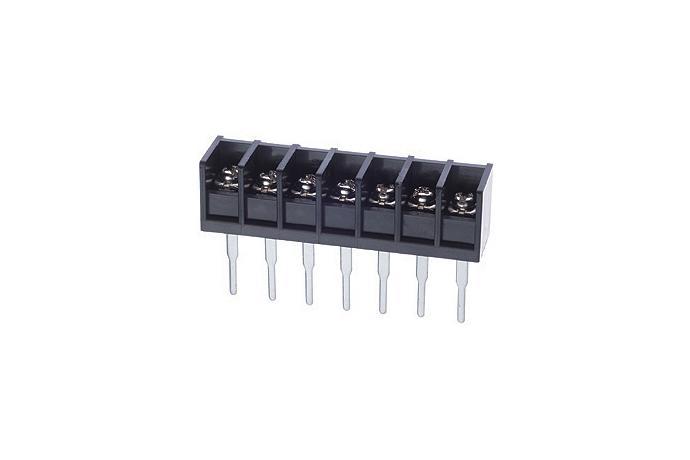

product Image
Terminal_Blocks
Model Name
950ME(*L)
Series
P.C.B Type
View All
Data
-
Manufacturer information
provider logo
BEE RYONG ELECTRONICS

Terminal electronic parts manufacturer, Terminal block, Connector, PCB, Assembly

Problem with product info?
Update request
Manufacturer
BEE RYONG ELECTRONICS
Product Type
Machine
Brand
-
SKU
25230
Product Name
Terminal_Blocks
Model Name
950ME(*L)
Size
-
Weight
-
Product Details

BEE RYONG Terminal_Blocks 950ME(*L)

(*L) = Option
※ Cover Option


● Rating : 250V 18A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG16~22

● Maximum Acceptable Temperature : -40°C ~ +85°C

BEE RYONG Terminal_Blocks 950ME(*L) 1

A-B Dimension

 P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

 16

17

18

19

20

 A±0.8

-

20​.5 ​

30

39​.5 ​

49

58​.5 ​

68

77​.5 ​

87

96​.5 ​

106

115​.5 ​

125

134​.5 ​

144

153​.5 ​

163

172​.5 ​

182

191​.5 ​

 B±0.5

 -

9.5​

19

28.5​

38

47.5​

57

66.5​

76

85.5​

95

104.5​

114

123.5​

133

142.5​

152

161.5​

171

180.5



 NO

 Component Part​

 Material​

 Standard​

 Plated​

 Remark​

 1

 Frame

 P.B.T.

 UL94V-0

 -

 -

 2

 Terminal

 BRASS

 C2680R

 Sn

 -

 3

 Screw

 SWCH10A

 -

 Ni

 M3.5 * 8

 4

 WASHER

SPCC

-

Ni

□7.2 * 7.2
