Manufacturer
BEE RYONG ELECTRONICS
Product Type
Machine
Brand
-
SKU
25139

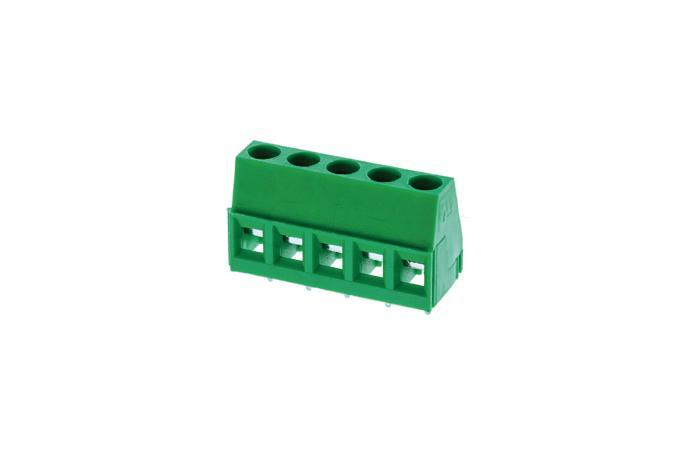

Product Name
Terminal_Blocks
Model Name
500C
Size
-
Weight
-
Product Details
● Rating : 250V 10A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2000V Per Minute
● Wire Size / Range : AWG18~26
● Maximum Acceptable Temperature : -40°C ~ +85°C
A-B Dimension
|
P |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
∞ |
|
A±0.8 |
- |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
... |
|
B±0.8 |
- |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
... |
※ tolerance : ±0.04mm / pin
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.A.66 |
UL94V-0 |
GREEN |
- |
|
2 |
Terminal |
BRASS |
C2680R |
Sn |
- |
|
3 |
Rec Terminal |
FREE-CUTTING BRASS |
C3604 |
Ni |
- |
|
4 |
Screw |
SWCH10A |
- |
Ni |
M2.5 * 4.8 |
