Manufacturer
BEE RYONG ELECTRONICS
Product Type
Machine
Brand
-
SKU
25127
Product Name
Terminal_Blocks
Model Name
501S2
Size
-
Weight
-
Product Details
● Rating : 300V 6A
● Insulation Resistance : More Than 500MΩ DC 500V
● Withstand Voltage : AC2000V Per Minute
● Wire Size / Range : AWG24~14(Ø0.5~1.6mm)
● Maximum Acceptable Temperature : -25°C ~ +80°C

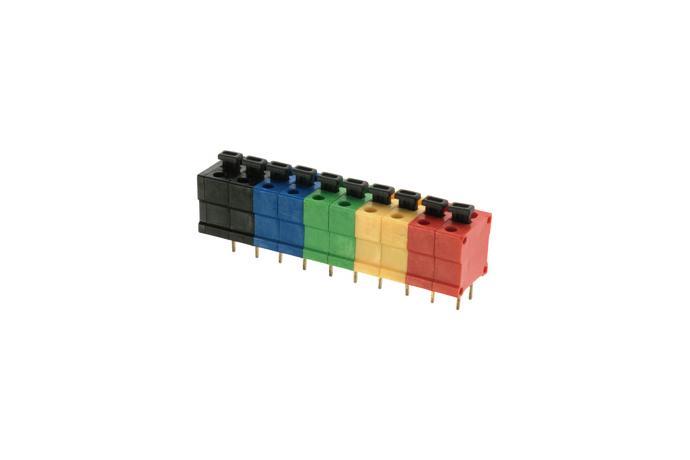

● Color : Red, Yellow, Green, Blue, Black
A-B Dimension
|
A.B Dimension |
|
|
A±0.8 |
(P х 5.0) + 1.5 |
|
B±0.8 |
(P - 1) x 5 |
※ tolerance : ±0.04mm / pin
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.A.66 |
UL94V-0 |
- |
- |
|
2 |
Side Cover |
P.A.66 |
UL94V-0 |
- |
- |
|
3 |
Push Button |
P.A.66 |
UL94V-2 |
- |
- |
|
4 |
Terminal |
BRASS |
C2680R |
Sn |
- |
|
5 |
Plate Spring |
SUS |
SUS304 |
- |
- |
