product Image
Terminal_Blocks
Model Name
500S1
Series
Onetouch Type
View All
Data
-
Manufacturer information
provider logo
BEE RYONG ELECTRONICS

Terminal electronic parts manufacturer, Terminal block, Connector, PCB, Assembly

Problem with product info?
Update request
Manufacturer
BEE RYONG ELECTRONICS
Product Type
Machine
Brand
-
SKU
25123
Product Name
Terminal_Blocks
Model Name
500S1
Size
-
Weight
-
Product Details

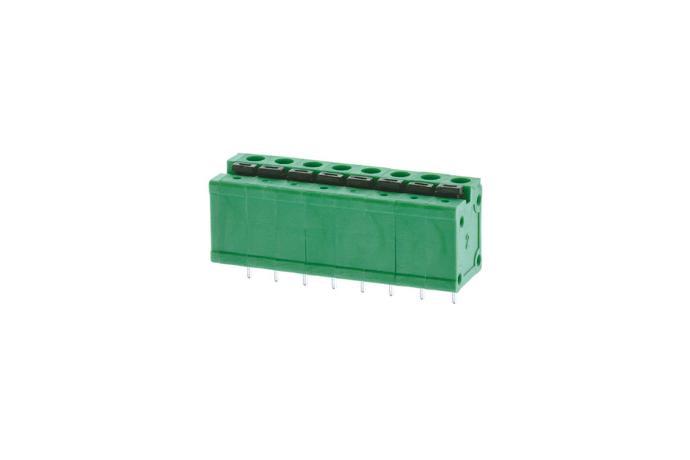

BEE RYONG Terminal_Blocks 500S1

● Rating : 250V 10A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG18~26

● Maximum Acceptable Temperature : -40°C ~ +105°C

BEE RYONG Terminal_Blocks 500S1 1

A-B Dimension

A.B Dimension

A±0.8

(P х 5.0) + 1.5

B±0.8

(P - 1) x 5







※ tolerance : ±0.04mm / pin

No

Component Part

Material

Standard

Plated

Remark

1

Frame

P.A.66

UL94V-0

-

-

2

Push Button

P.A.66

UL94V-2

-

-

3

Terminal

BRASS

C2680R

Sn​

-

4

Plate Spring

SUS

SUS 304

-

-

5

Side Cover

P.A.66

UL94V-0

-

-
