Manufacturer
AUTOMA
Product Type
Machine
Brand
-
SKU
135247
Product Name

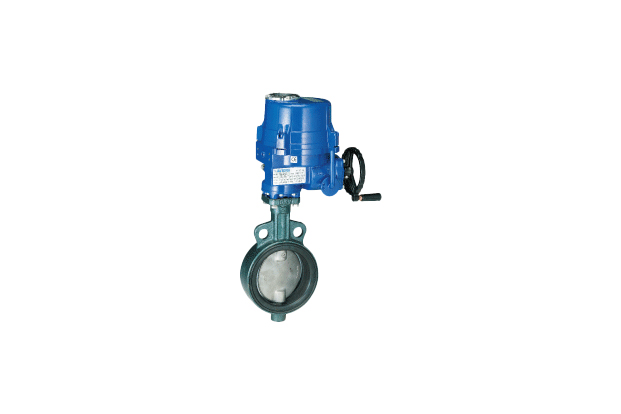

Electric Valve (Butterfly Valve )
Model Name
ATM0040-40BF, ATM0040-50BF, ATM0080-65BF, ATM0080-80BF, ATM0080-100BF, ATM0100-125BF, ATM0160-150BF, ATM0240-200BF, ATM0350-250BF, ATM0500-300BF, ATM0800-350BF, ATM1100-400BF, ATM2000-450BF, ATM2000-500BF, ATM3000-600BF
Size
-
Weight
-
Product Details
Specification
| Valve Size | 40A ~ 1000A |
| Actuator Model | ATM0040 ~ ATM3000 |
| Actuator Type | Electric |
| Electrical | AC110V 220V, AC380V 440V |
| Rotating Angle | 90˚ ±5˚ |
| Operating Type | ON/OFF, MODULATING (Except for ATM0040) |
| Fluid Temp | -20℃ ~ ±70℃ |
| Rating | ANSI150# |
| Body Material | Body(A216 WCB, A351 CF8) / Disc(A351 CF8, CF8M) / Seat(EPDM, VITON) |
Dimension
| Unit : mm | ||||||||
| Model | Size | Actuator | H1 | H2 | L | |||
| A | A1 | |||||||
| ATM0040-40BF | 40A | 1-1/2" | 113.5 | 121.8 | 263 | 58 | - | 41 |
| ATM0040-50BF | 50A | 2" | 113.5 | 121.8 | 270 | 65 | - | 43 |
| ATM0080-65BF | 65A | 2-1/2" | 160 | 121 | 268 | 71 | 40 | 46 |
| ATM0080-80BF | 80A | 3" | 160 | 121 | 278 | 83 | 40 | 46 |
| ATM0080-100BF | 100A | 4" | 160 | 121 | 291 | 100 | 40 | 52 |
| ATM0100-125BF | 125A | 5" | 258 | 172 | 433 | 110 | 125 | 56 |
| ATM0160-150BF | 150A | 6" | 338 | 229 | 489 | 130 | 140 | 56 |
| ATM0240-200BF | 200A | 8" | 338 | 229 | 552 | 163 | 140 | 60 |
| ATM0350-250BF | 250A | 10" | 357 | 244 | 608 | 227 | 170 | 68 |
| ATM0500-300BF | 300A | 12" | 357 | 244 | 660 | 252 | 170 | 78 |
| ATM0800-350BF | 350A | 14" | 380 | 287 | 669 | 272 | 170 | 78 |
| ATM1100-400BF | 400A | 16" | 380 | 287 | 713 | 343 | 170 | 102 |
| ATM2000-450BF | 450A | 18" | 440 | 375 | 836 | 366 | 225 | 114 |
| ATM2000-500BF | 500A | 20" | 440 | 375 | 900 | 421 | 225 | 127 |
| ATM3000-600BF | 600A | 24" | 440 | 375 | 985 | 493 | 225 | 154 |
