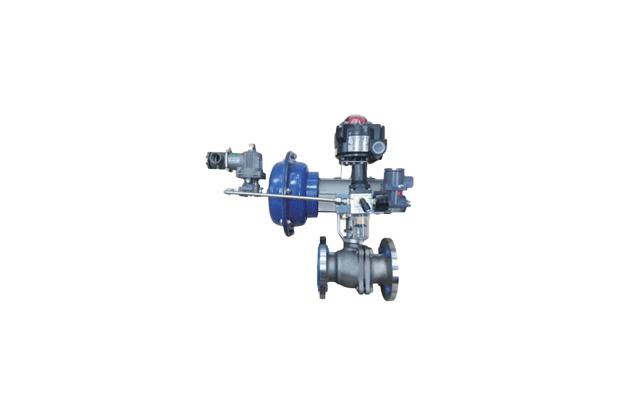

Automatic Valve (2-Stage Flanged Ball Valve)
Model Name
AD65-15F-2ST
Data
-
Manufacturer information
AUTOMA
Automatic valve, Electric ball valve, Control valve, Globe valve, Actuator and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
AUTOMA
Product Type
Machine
Brand
-
SKU
135238
Product Name
Automatic Valve (2-Stage Flanged Ball Valve)
Model Name
AD65-15F-2ST, AD65-20F-2ST, AD65-25F-2ST, AD65-32F-2ST, AD65-40F-2ST, AD65-50F-2ST, AD80-65F-2ST, AD80-80F-2ST, AD100-100F-ST
Size
-
Weight
-
Product Details
Specification
| Valve Size | 15A ~ 80A |

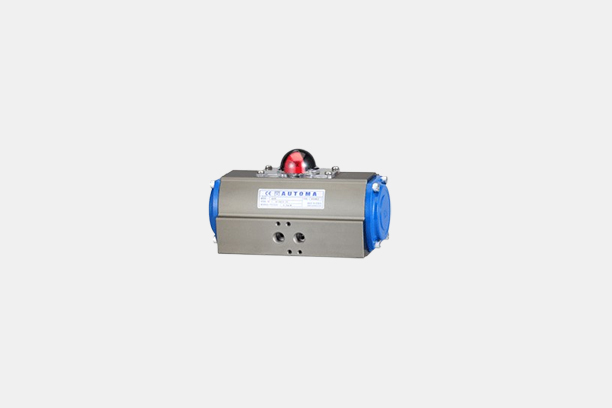

| Actuator Model | AD65, AD80 + Diaphragm |
| Actuator Type | Double Acting |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 4 ~ 7kg/cm |
| Rotaing Angle | 90° ± 5° |
| Fluid Temperature | '-10℃ ~ 90℃ (-10℃ ~ 150℃) |
| Rating | JIS 10K ANSI 150# |
| Body Material | SCS13(SCS14, SCPH2)/Body SCS13(SCS14)/Ball PTFE(RTFE)/Seat |
| Accessory |
 |
 |
|||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
Dimension
| Unit : mm | ||||||||||||
| Model | Size | A | A1 | H | L | |||||||
| mm | inch | Approx. | T | Φd | ΦRF | ΦC | ΦD | N-ΦH | ||||
| AD65-15F-2ST | 15A | 1/2" | 315 | 89 | 351 | 108 | 12 | 15 | 52 | 70 | 95 | 4-15 |
| AD65-20F-2ST | 20A | 3/4" | 315 | 89 | 354 | 177 | 14 | 20 | 58 | 75 | 100 | 4-15 |
| AD65-25F-2ST | 25A | 1" | 315 | 89 | 363 | 127 | 14 | 25 | 70 | 90 | 125 | 4-19 |
| AD65-32F-2ST | 32A | 1-1/4" | 315 | 89 | 366 | 140 | 16 | 32 | 80 | 100 | 135 | 4-19 |
| AD65-40F-2ST | 40A | 1-1/2" | 315 | 89 | 388 | 165 | 16 | 40 | 85 | 105 | 140 | 4-19 |
| AD65-50F-2ST | 50A | 2" | 315 | 89 | 395 | 178 | 16 | 50 | 100 | 120 | 155 | 4-19 |
| AD80-65F-2ST | 65A | 2-1/2" | 361 | 101 | 423 | 190 | 18 | 65 | 120 | 140 | 175 | 4-19 |
| AD80-80F-2ST | 80A | 3" | 361 | 101 | 465 | 203 | 18 | 80 | 130 | 150 | 185 | 8-19 |
| AD100-100F-ST | 100A | 4" | 478 | 137 | 488 | 229 | 18 | 100 | 151 | 175 | 210 | 8-19 |
