AUTOMA

AUTOMA

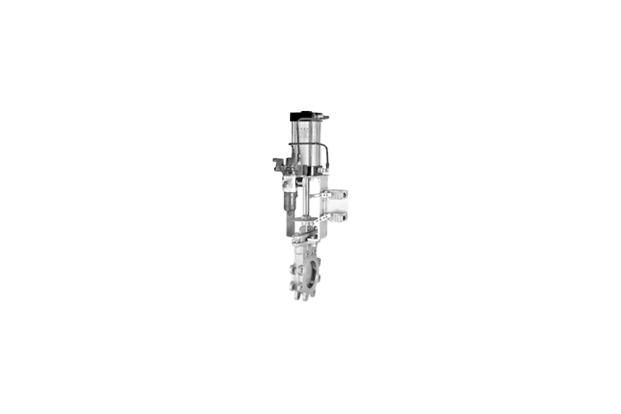

Automatic Valve (Knife Gate Valve)

Model

Series

Pneumatic Products


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description



Specification

Valve Size 50A ~ 500A
Actuator Model AKGV Series
Actuator Type Pneumaitc Double Action Cylinder / Spring Return(with Dry Air)
Operating Pressure 4 ~ 7kg/㎠
Fluid Temperature '-40℃ ~ 120℃
Rating ANSI 150#
Body Material Body(A351 CF8, 8M) / Disc(A182 F304,316) / Packing(Asbestos + Teflon)
Accessory Solenoid Valve, Limit Switch, Air Filter & Regulator, Speed Controller, E/P Positioner, Manual Handle



Dimension

Unit : mm
Model Size H1 H (Approx.) L
mm inch
AKGV-50A 50A 2" 100 523 48
AKGV-65A 65A 2-1/2" 109 447 51
AKGV-80A 80A 3" 102 568 51
AKGV-100A 100A 4" 145 644 51
AKGV-125A 125A 5" 169 571 57
AKGV-150A 150A 6" 180 750 57
AKGV-200A 200A 8" 219 923 70
AKGV-250A 250A 10" 276 1132 70
AKGV-300A 300A 12" 314 1303 76
AKGV-350A 350A 14" 340 1430 76
AKGV-400A 400A 16" 400 1633 89
AKGV-450A 450A 18" 453 1809 89
AKGV-500A 500A 20" 495 1965 114
