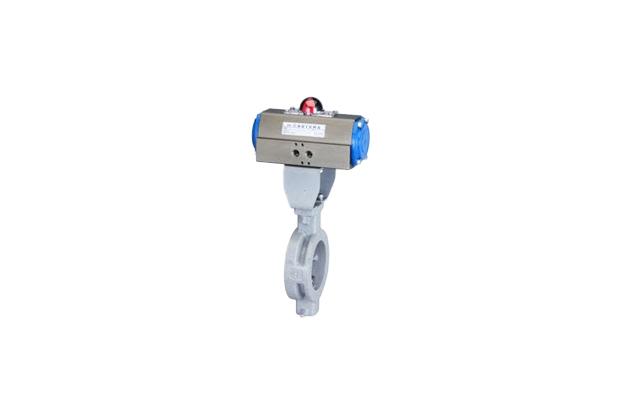

Automatic Valve (High Performance Butterfly Valve)
Model Name
AD50-40HBF
Data
-
Manufacturer information
AUTOMA
Automatic valve, Electric ball valve, Control valve, Globe valve, Actuator and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
AUTOMA
Product Type
Machine
Brand
-
SKU
135225
Product Name
Automatic Valve (High Performance Butterfly Valve)
Model Name
AD50-40HBF, AD50-50HBF, AD65-65HBF, AD65-80HBF, AD65-100HBF, AD80-125HBF, AD80-150HBF, AD100-200HBF, AD125-250HBF, AD125-300HBF, AD140-350HBF, AD160-400HBF, AD160-450HBF
Size
-
Weight
-
Product Details
Specification
| Valve Size | 25A(1") ~ 150A(6") |
| Actuator Model | ATBB-Series |
| Actuator Type | Pneumatic Double Acting / Single Acting / Spring Return(with Dry Air) |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 4 ~ 7kg/㎠ |
| Fluid Temperature | '-10℃ ~ 110℃ |
| Rating | ANSI 150# |
| Body Material | FCD450, SCPH2, SCS13, SCS14 |
| Disc Material | SCS13, SCS14 |
| Seat Material | RTFE, PTFE, MTFE, 316SS |
| Accessory | Solenoid Valve, Limit Switch Box, Air Filter & Regulator, Speed Controller, E/P Positioner, Declutchable Gear Box |
Dimension
| Unit : mm | ||||||||
| Model | Size | Actuator | H1 | L±0.5 | End Connection | |||
| mm | inch | A | A1 | ØD | ||||
| AD50-40HBF | 40A | 1-1/2" | 162 | 75 | 254 | 73 | 43 | 86 |
| AD50-50HBF | 50A | 2" | 162 | 75 | 261 | 81 | 44 | 100 |
| AD65-65HBF | 65A | 2-1/2" | 202 | 89 | 289 | 83 | 46 | 123 |
| AD65-80HBF | 80A | 3" | 202 | 89 | 303 | 87 | 46 | 132 |
| AD65-100HBF | 100A | 4" | 202 | 89 | 310 | 111 | 52 | 157 |
| AD80-125HBF | 125A | 5" | 262 | 101 | 369 | 121 | 57 | 185 |
| AD80-150HBF | 150A | 6" | 262 | 101 | 390 | 145 | 62 | 220 |
| AD100-200HBF | 200A | 8" | 311 | 129 | 467 | 180 | 64 | 277 |
| AD125-250HBF | 250A | 10" | 390 | 151 | 531 | 220 | 72 | 337 |
| AD125-300HBF | 300A | 12" | 390 | 151 | 579 | 279 | 96 | 380 |
| AD140-350HBF | 350A | 14" | 431 | 164 | 625 | 309 | 93 | 410 |
| AD160-400HBF | 400A | 16" | 506 | 189 | 680 | 340 | 115 | 475 |
| AD160-450HBF | 450A | 18" | 506 | 189 | 720 | 370 | 115 | 534 |
