Product Name

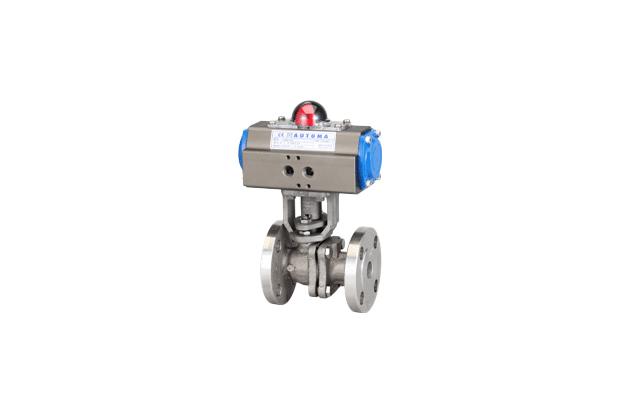

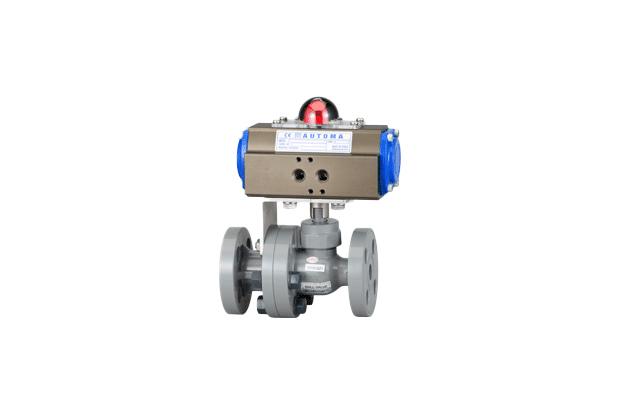

Automatic Valve (Flange Ball Valve)
Model Name
AD50-15F, AD50-20F, AD50-25F, AD65-32F, AD65-40F, AD65-50F, AD80-65F, AD80-80F, AD100-100F, AD125-125F, AD140-150F, AD160-200F, AD200-250F, AS50-15F, AS50-20F, AS65-25F, AS65-32F, AS65-40F, AS80-50F, AS80-65F, AS100-80F, AS125-100F, AS140-125F, AS160-150F, AS200-200F
Size
-
Weight
-
Product Details
Specification
| Valve Size | 15A(1/2") ~ 300A(12") |
| Actuator Model | AD50/AD200 |
| Actuator Type | Pneumatic Double Acting(with Dry Air) |
| Operating Pressure | 4 ~ 7kg/㎠ |
| Rotating Angle | 90˚ ±5˚ |
| Fluid Temperature | '-10℃ ~ 150℃ |
| Rating | ANSI 150# (300#, 600#) |
| Body Material | Body(A216 WCB, A351 CF8, 8M) / Ball(A182 F304,316) / Seat(PTFE,RTFE,PEEK,Metal) |
| Accessory | Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
Dimension
| Unit : mm | ||||||
| Model | Size | A | A1 | L | ||
| mm | inch | |||||
| AD50-15F | 15A | 1/2" | 162 | 75 | 188 | 108 |
| AD50-20F | 20A | 3/4" | 162 | 75 | 191 | 117 |
| AD50-25F | 25A | 1" | 162 | 75 | 200 | 127 |
| AD65-32F | 32A | 1-1/4" | 202 | 89 | 220 | 140 |
| AD65-40F | 40A | 1-1/2" | 202 | 89 | 242 | 165 |
| AD65-50F | 50A | 2" | 202 | 89 | 249 | 178 |
| AD80-65F | 65A | 2-1/2" | 262 | 101 | 279 | 190 |
| AD80-80F | 80A | 3" | 262 | 101 | 319 | 203 |
| AD100-100F | 100A | 4" | 311 | 129 | 357 | 229 |
| AD125-125F | 125A | 5" | 390 | 151 | 415 | 356 |
| AD140-150F | 150A | 6" | 431 | 164 | 480 | 394 |
| AD160-200F | 200A | 8" | 506 | 189 | 589 | 457 |
| AD200-250F | 250A | 10" | 605 | 231 | 720 | 533 |
Specification
| Valve Size | 15A(1/2") ~ 300A(12") |
| Actuator Model | AS50 ~ AS200 |
| Actuator Type | Pneumatic Single Acting / Spring Return(with Dry Air) |
| Operating Pressure | 4.5 ~ 7kg/㎠ |
| Rotating Angle | 90˚ ±5˚ |
| Fluid Temperature | '-10℃ ~ 150℃ |
| Rating | ANSI 150# (300#) (600#) |
| Body Material | Body(A216 WCB, A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(RTFE,PTFE,PEEK,Metal) |
| Accessory | Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
Dimension
| Unit : mm | ||||||
| Model | Size | A | A1 | L | ||
| mm | inch | |||||
| AS50-15F | 15A | 1/2" | 257 | 75 | 188 | 108 |
| AS50-20F | 20A | 3/4" | 257 | 75 | 191 | 117 |
| AS65-25F | 25A | 1" | 314 | 89 | 217 | 127 |
| AS65-32F | 32A | 1-1/4" | 314 | 89 | 220 | 140 |
| AS65-40F | 40A | 1-1/2" | 314 | 89 | 242 | 165 |
| AS80-50F | 50A | 2" | 430 | 101 | 268 | 178 |
| AS80-65F | 65A | 2-1/2" | 430 | 101 | 279 | 190 |
| AS100-80F | 80A | 3" | 500 | 129 | 341 | 203 |
| AS125-100F | 100A | 4" | 606 | 151 | 383 | 229 |
| AS140-125F | 125A | 5" | 682 | 164 | 433 | 356 |
| AS160-150F | 150A | 6" | 781 | 189 | 504 | 394 |
| AS200-200F | 200A | 8" | 982 | 231 | 657 | 457 |
More products

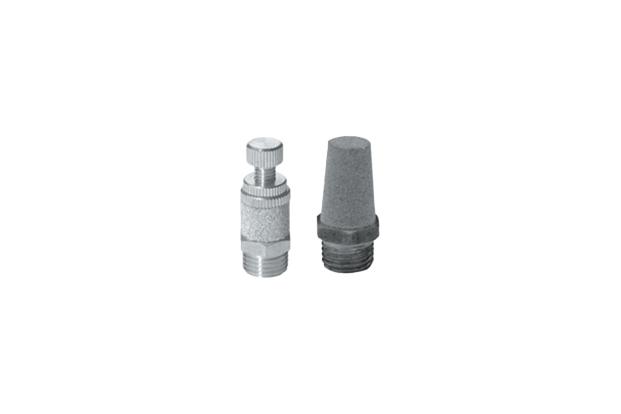

SilencerASC-8A, ASL-8A

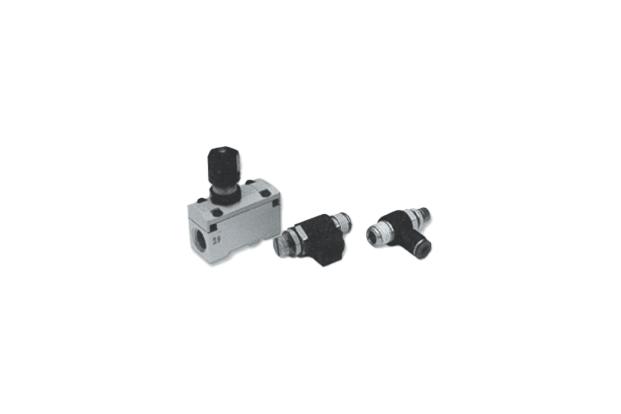

Speed ControllerFC1-8, FC3-8, FC3G-8

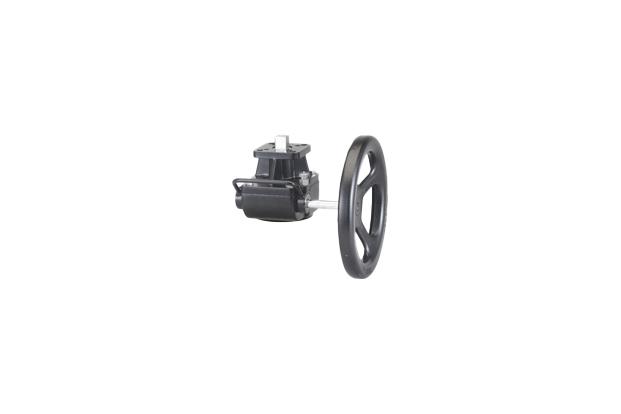

Declutchable Gear BoxADG050, ADG070, ADG140

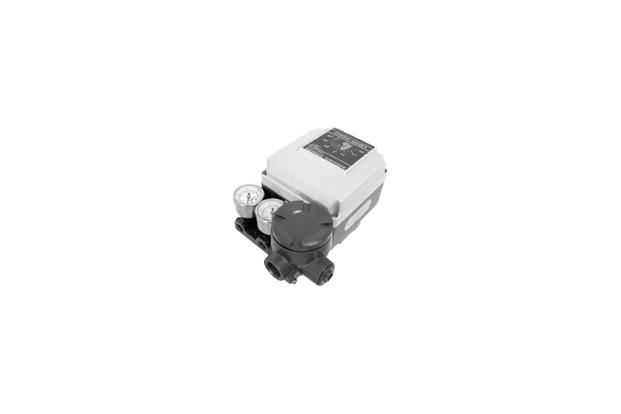

Elector-Pneumatic PositionerEPR, EPL

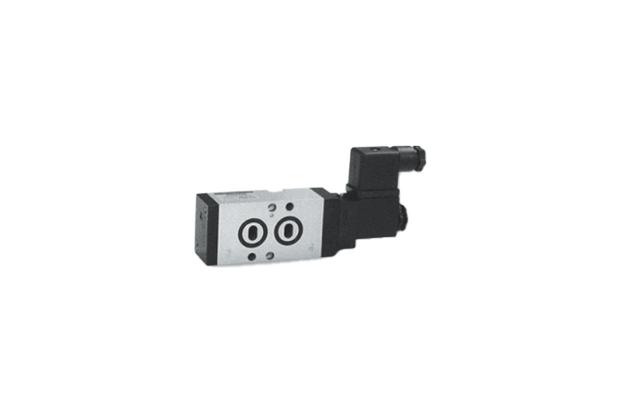

Solenoid ValveANS, ANS-D, ESV

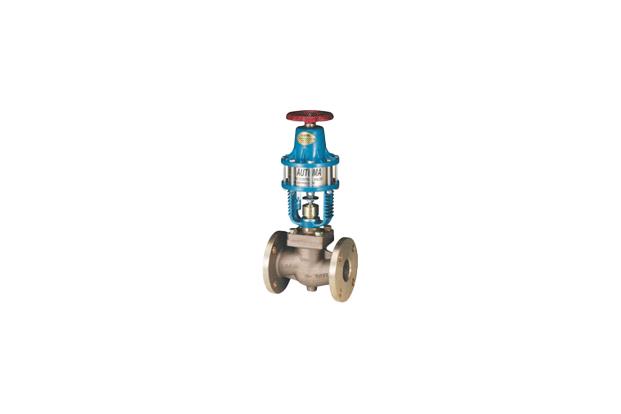

Pinch Valve (On-Off Globe Valve)AGV-25A, AGV-32A, AGV-40A, AGV-50A, AGV-65A, AGV-80A

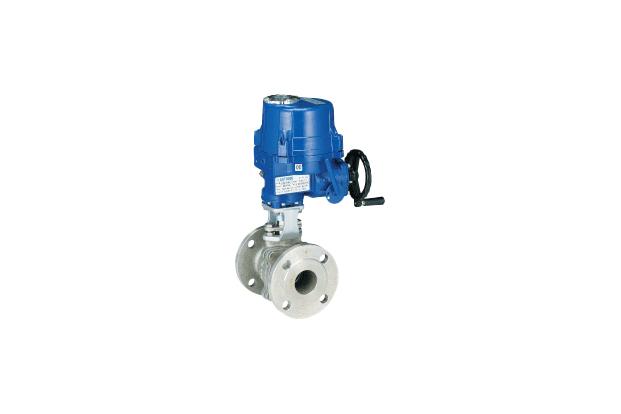

Electric Valve (Flange Ball Valve)ATM0040-15F, ATM0040-20F, ATM0040-25F, ATM0040-32F, ATM0080-40F, ATM0080-50F, ATM0160-65F, ATM0160-80F, ATM0350-100F, ATM0500-125F, ATM0800-150F, ATM1100-200F, ATM2000-250F, ATM2000-300F, ATM3000-350F

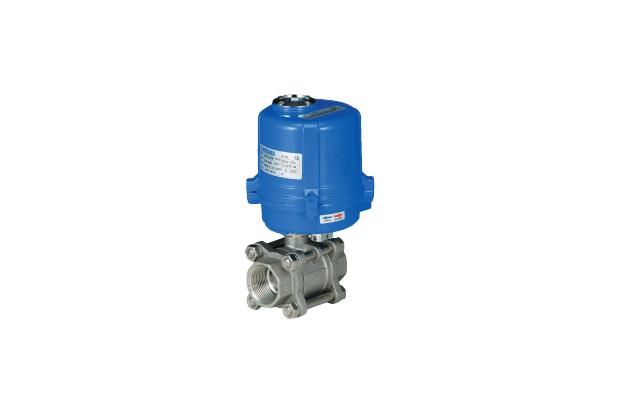

Electric Valve (Screw 3pc Ball Valve)ATM0020-8S3, ATM0020-10S3, ATM0020-15S3, ATM0020-20S3, ATM0040-25S3, ATM0040-32S3, ATM0040-40S3, ATM0080-50S3
Electric Valve (Screw 1pc Ball Valve)ATM0020-8S3, ATM0020-10S3, ATM0020-15S3, ATM0020-20S3, ATM0020-25S3, ATM0040-32S3, ATM0040-40S3, ATM0080-50S3

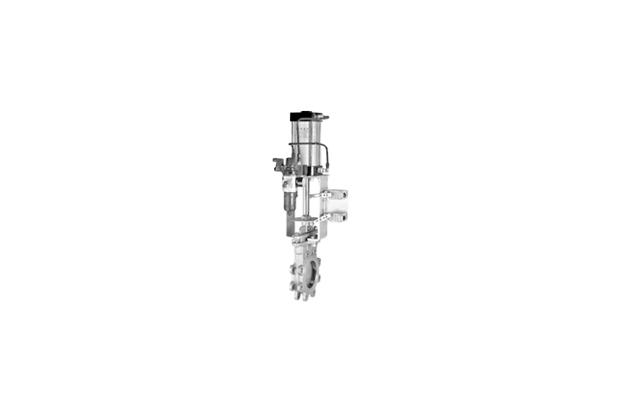

Automatic Valve (Knife Gate Valve)AKGV-50A, AKGV-65A, AKGV-80A, AKGV-100A, AKGV-125A, AKGV-150A, AKGV-200A, AKGV-250A, AKGV-300A, AKGV-350A, AKGV-400A, AKGV-450A, AKGV-500A

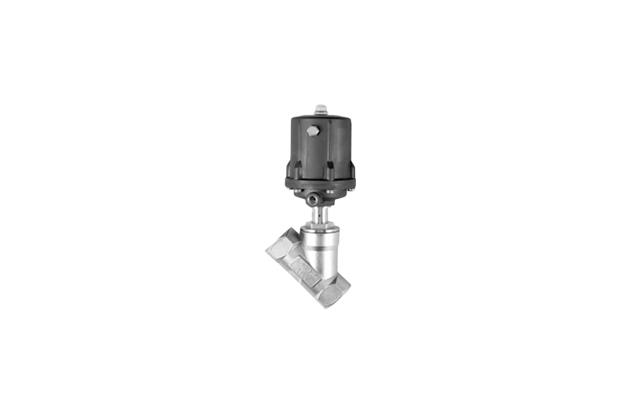

Automatic Valve (Y Type Valve)AGV-15Y, AGV-20Y, AGV-25Y, AGV-32Y, AGV-40Y, AGV-50Y

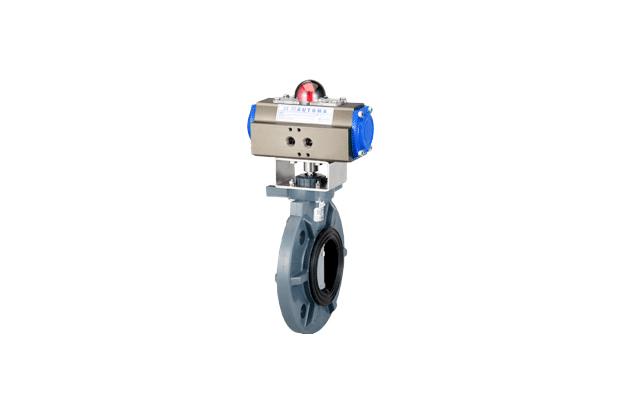

Automatic Valve (Plastic Butterfly Valve)AD50-50BF, AD50-65BF, AD65-80BF, AD65-100BF, AD80-125BF, AD80-150BF, AD100-200BF, AD100-250BF, AD125-300BF, AD140-350BF, AD160-400BF
Automatic Valve (Plastic Flange Ball Valve)AD50-15FA, D50-20FA, D50-25FA, D50-30FA, D65-40FA, D65-50FA, D65-65FA, D80-80FA, D80-100FA, D100-125FA, D125-150F

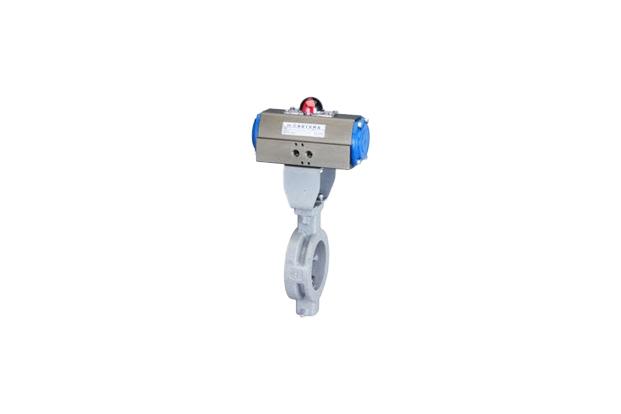

Automatic Valve (High Performance Butterfly Valve)AD50-40HBF, AD50-50HBF, AD65-65HBF, AD65-80HBF, AD65-100HBF, AD80-125HBF, AD80-150HBF, AD100-200HBF, AD125-250HBF, AD125-300HBF, AD140-350HBF, AD160-400HBF, AD160-450HBF
Automatic Valve (Butterfly Valve)AD50-40BF, AD50-50BF, AD50-65BF, AD65-80BF, AD65-100BF, AD80-125BF, AD80-150BF, AD100-200BF, AD100-250BF, AD125-300BF, AD140-350BF, AD160-400BF, AD160-450BF, AD200-500BF, AD200-600BF, AS50-40BF, AS50-50BF, AS65-65BF, AS65-80BF, AS80-100BF, AS80-125BF, AS100-150BF, AS100-200BF, AS125-250BF, AS140-300BF, AS160-350BF, AS160-400BF, AS200-450BF, AS200-500BF

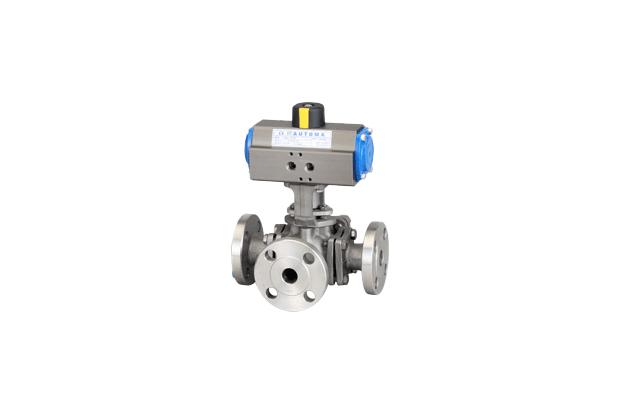

Automatic Valve (3-Way Flange Ball Valve)AD50-15F3W, AD50-20F3W, AD65-25F3W, AD65-40F3W, AD80-50F3W, AD80-65F3W, AD100-80F3W, AD125-100F3W, AD140-125F3W, AD160-150F3W, AD200-200F3W
