Manufacturer
AUTOMA
Product Type
Machine
Brand
-
SKU
135211
Product Name

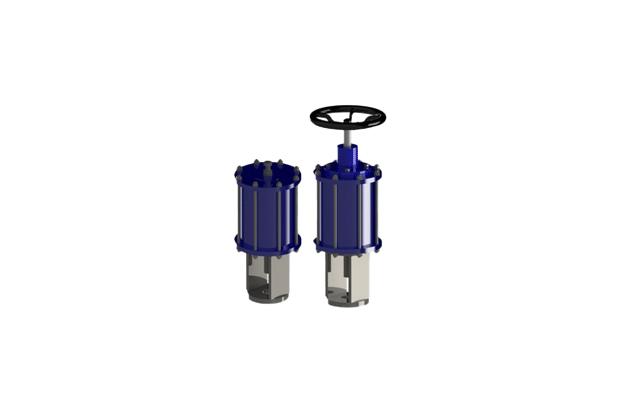

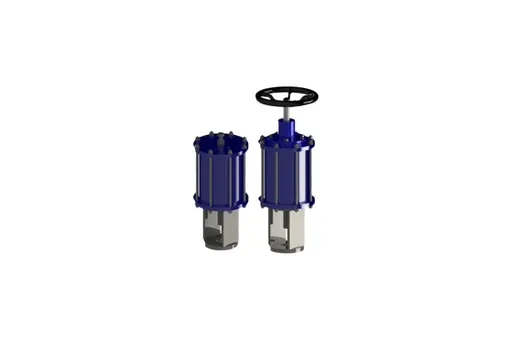

Pneumatic Actuator (Linear Type)
Model Name
ALC150S, ALC200S, ALC250S, ALC300S
Size
-
Weight
-
Product Details
Specification
| Item | ALC150S | ALC200S | ALC250S | ALC300S |
| Operating Type | Linear Type(Singla Acting) | |||
| Operating Media | Compressed Dry Air | |||
| Operating Pressure | 4.5 ~ 7kg/cm2 | |||
| Oprating Range | Depending On The Valve | |||
| Operating Temperature | -20°C ~ 80°C(Option : -40°C ~ 200°C) | |||
Part and Material
| No. | Part Name | Materials | No. | Part Name | Materials |
| 1 | Cylinder | Steel Alloy | 13 | Cylinder Guide Washer | Stainless Steel |
| 2 | Piston | Steel Alloy | 14 | Cylinder Guide Nut | Stainless Steel |
| 3 | Piston Guide Ring | Engineering Plastic | 15 | Piston Rod | Steel Alloy |
| 4 | Piston O-Ring | NBR | 16 | Piston Fixing Bolt | Steel Alloy |
| 5 | Cylinder Cover(Bottom) | Steel Alloy | 17 | Bracket | Steel Alloy |
| 6 | Cylinder Cover O-Ring | NBR | 18 | Bracket Bolt | Stainless Steel |
| 7 | Piston Rod O-Ring | NBR | 19 | Bracket Washer | Stainless Steel |
| 8 | Cylinder Cover(Top) | Steel Alloy | 20 | Stopper Washer | Stainless Steel |
| 9 | Cylinder Cover O-Ring | NBR | 21 | Stopper Nut | Stainless Steel |
| 10 | Cylinder Guide Bolt | Steel Alloy | 22 | Stopper Bolt | Stainless Steel |
| 11 | Cylinder Guide Washer | Stainless Steel | 23 | Spring | Steel Alloy |
| 12 | Cylinder Guide Nut | Stainless Steel |
