AUTOFLOW
AUTOFLOW
Description
Outline and feature

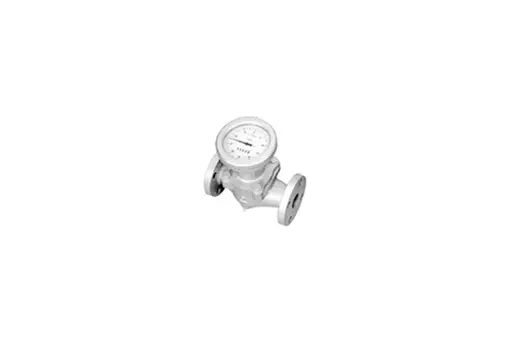

This is an impeller-type flow meter with a built-in strainer which realized a compact size and a lightweight. A wide selection of signal oscillators to be mounted, available for use in a wide variety of fields.
- Solved troubles due to mixing of foreign matters.
- Possibility of measurement of high-temperature water (max.200deg C).
Applications
- Measurement control of water feed to boilers, cold water, hot water, and high-temperature water for industrial use in various kinds of plants such as chemical and water treating plants. etc
Main specifications
| Size | 20A, 40A, 50A |
| Flow range |
Standard : 0.5 to 25cub.m/h High temp. water : 0.5 to 18cub m/h |
| Temperature |
Standard : room temp. to 80deg C High temp. water : 110 to 200deg C or less |
| Pressure |
1.0MPa or less Special (2.0Mpa or less) |
| Accuracy | Within +-1.0% |
| Material |
FCD450/CAC406 FCD450/SCD13 SCS13/SCS13 |
| Construction | Explosion-proof d2G4 |
