AUTOFLOW
AUTOFLOW
Description
Outline and feature

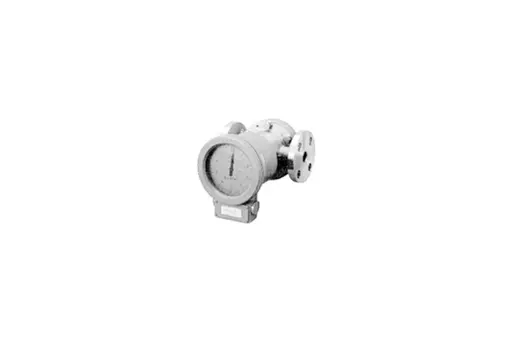

This is a rotary piston-type flow meter not easily affected by temperature and viscosity. Various kinds of material can be selected, and maintenance and inspection are also simple
- Even a highly viscous liquid can be measured easily with little pressure loss
- Also enables the selection of anti-corrosive materials and measurement of acidic and alkaline liquids.
- possibility of loading of a wide selection of signal oscillators, and easy connection with various kinds of receiver and control equipment.
Applications
- Measurement management or control of various kinds of fluid such as foods, chemical solutions. etc.
Main specifications
| Size | 20A, 25A |
| Flow range | 0.5-1,600L/h |
| Viscosity |
0.5-3,000mPas Special specification (0.2-30,000mPas) |
| Temperature |
-5 to 120 deg C Spcial Specification (0.2-30,000mPas) |
| Pressure | Working pressure less than 1.0MPa Special specifications (Less than 2.0MPa) |
| Accuracy | Within +-0.5% |
| Material |
FC200/CAC406 FC200/FC200 FC200/SCS14 SCS14/SCS14 |
| Construction | Explosion-proof and frame-proof type d2G4, instinct-safe type i3aG4 |
