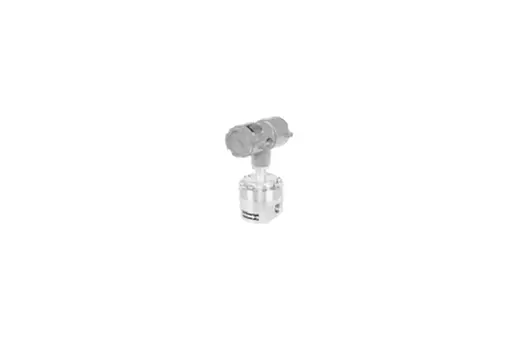

AUTOFLOW
AUTOFLOW
Description
Outline and feature
High-precision flow meter adopting rotary piston-type suitable for measurement in small flow rate area
- Compact and lightweight design with only rotor as mobile part, Easy maintenance and inspection.
- Also adapted to highly corros
Applications
- Case where control of high-precision measurement in small flow rate area, bath preparation, etc is desired
- Control such as process control of additives, mixing flow rate control in chemical plant, etc.
Main specifications
| Size | Rc1/4, Rc1/2 (Screw-in type) 15A, 20A (Flange type) |
| Flow range | 0.5-600L/h |
| Viscosity | 0.4-3,000mPas |
| Temperature | -5 to 120 deg C |
| Pressure | Working pressure less than 1.0MPa (Available up to 21.0Mpa) |
| Accuracy | Within +-0.75% |
| Material | CAC406, SUS316 |
| Consturction | Exd IIBT4 Explosion-proof ExdIIBT4 |
