SB® 50 MULTIPOLE CONNECTOR (UP TO 120 AMPS)

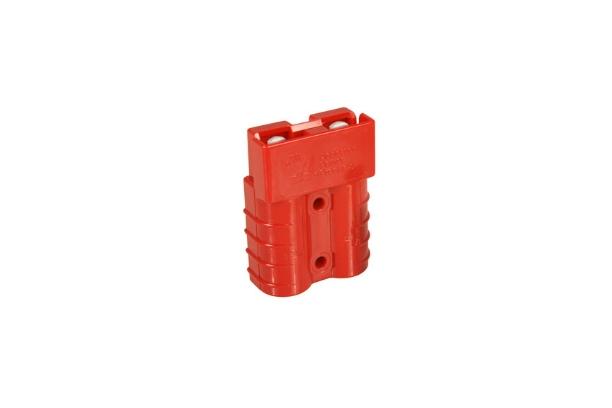

The innovative Anderson Power Products™ SB® 50 connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Products™ 2 pole connector is available with a 50 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SB® 50 connectors for many applications and wire sizes, #6 to #16 AWG (13.3 to 1.3 mm2). Mechanical keys ensure that these Anderson Power Products™ SB® 50 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.

Anderson Power Products™ SB® Connector Features:

• Low resistance silver or tin plated copper contacts - allows UL rated currents up to 120 amps
• UL rated for hot plugging up to 50 amps - Great for battery or other applications where the ability to interrupt circuits is required
• Chemical resistant housings available
• Wire, PCB, and busbar contacts - allows one connection system to meet multiple needs

Features

• Mechanical keyed housings
• Single-piece housing and unitized construction
• Genderless design

Benefits

• Mechanical keyed housings
• Single-piece housing and unitized construction
• Genderless design

Specifications

* Based on: 105°C rated or better cable of the largest size, Properly calibrated APP® recommended tooling, and a 25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below a 30°C temperature rise.
** Limited by the thermal properties of the connector plastic housing

Mechanical Drawing
