GENERAL DESCRIPTION

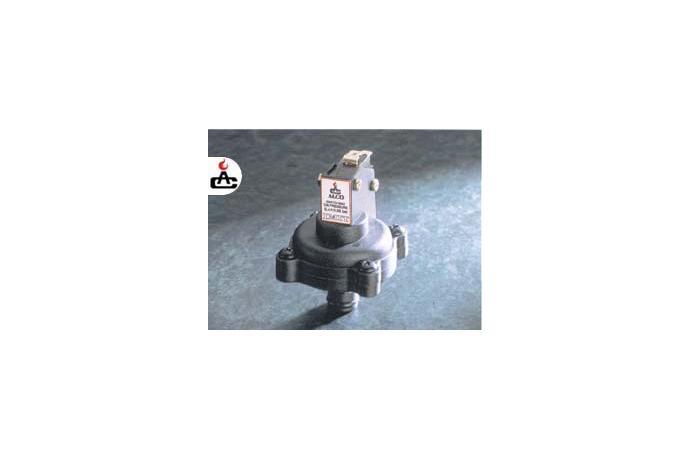

 Pressure switch for sanitary water flow on heating circuit of domestic boilers. For standard version the switching pressure value is 40 Kpa (400 mbar) but other calibration levels are available on request. The main peculiarity of PRS200 material (nylon 66 reinforced GF 30%) and hydraulic connections are high performances in terms of ruggedness, quick installation and low cost.


OPERATION FEATURES
  ● Fluid water
  ● Max. working pressure 3 bar
  ● Test pressure 4.5 bar
  ● Contacts rating 5A/250 Vac
  ● Material nylon 66 reinforced GF 30%
  ● Switching pressure 0.4 bar±0.03bar

 DIMENSIONS
