GENERAL DESCRIPTION

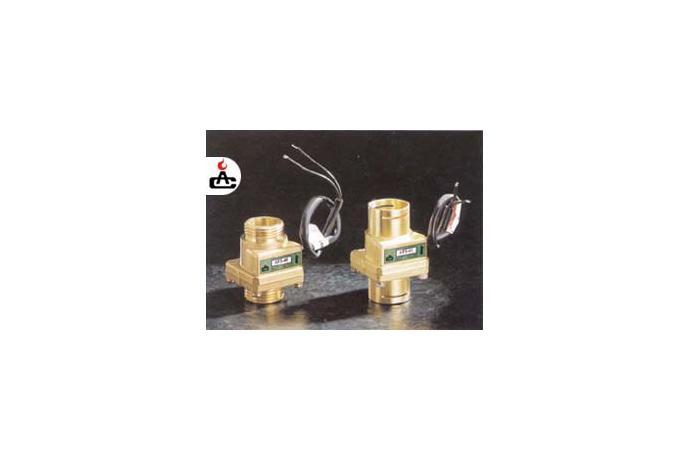

Flowswitch for water flow control in the boiler circuit. Standard switching flow rate 7 l/min. (different operate flow rates are available on request).
OPERATION FEATURES
● Fluid water
● Max. operating pressure 15 bar
● Static contact(reed switch) 0.2A
● Contact resistance max 100 mΩ
● Installation
- horizontal connection within ±5° from perfect horizon
(the reed switch shall be in upper position)
- vertical connection within ±5° from perfect vertical
(flow direction shall be upwards)
● Operate flow rate value 1.7 or 2.7 ±0.3 l/min.
(different values available on request)
● Material Brass
PRESSURE DROP DIAGRAM
CONVERSION TABLE
|
P |
KPa |
m.c.a |
bar |
|
1KPa |
1 |
0.1 |
0.01 |
|
1m.c.a |
10 |
1 |
0.1 |
|
1 bar |
100 |
10 |
1 |
DIMENSIONS
