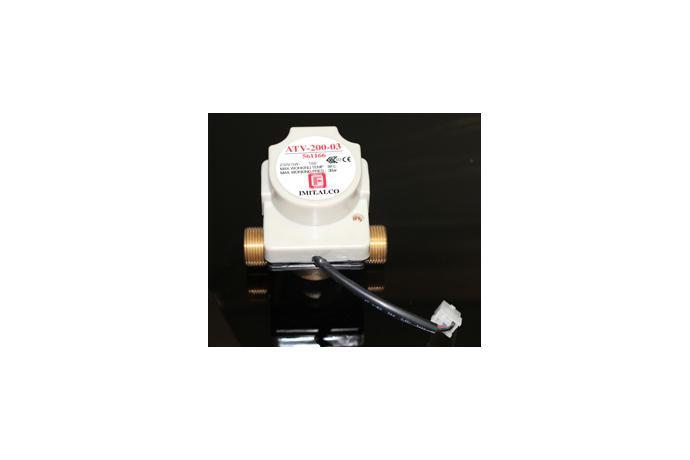

This series are equipped with manual middle position device and the position indicator, also the actuater can be replaced without any water leakage.

TECHNICAL DATA

- Fluid water
- Max. test pressure 10 bar
- Max. fluid temperature 90℃
- Max. ambient temperature 60℃
- Working time 6sec(50Hz)
- Power consumption 3W
- Power supply 220/240 Vac 50/60Hz
- Body maturial Brass
- Connection size Male BSP 3/8", 1/2", 3/4", 1",
 Compression 15mm, 22mm, 28mm
- Control ATV-203:SPDT
 ATV-204:SPDT


 WIRING DIAGRAM
