  • ALCO

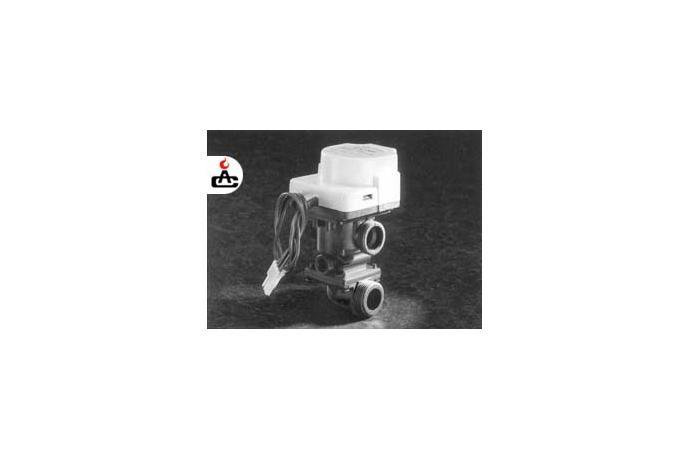

    Motorised Three Way Valve
    Model
    ATV300-01
    Series
    Valve

    Product Description

    3 WAY VALVE

    GENERAL DESCRIPTION
    Motorised three way ON-OFF valve.

    OPERATION FEATURES
     ● Fluid water
     ● Max. working pressure 3.0 bar
     ● Max. fluid temperature 90℃
     ● Max. ambient temperature 60℃
     ● Working time 6 or 12 sec. (50Hz)
     ● Power consumption 3W
     ● Power supply 220/240 Vac 50/60Hz
     ● Body material nylon 66 reinforced GF 30%



    WIRING DIAGRAM
    ALCO Motorised Three Way Valve ATV300-01



     PRESSURE DROP DIAGRAM

    ALCO Motorised Three Way Valve ATV300-01 1



     CONVERSION TABLE

    P

    KPa

    m.c.a

    bar

    1KPa

    1

    0.1

    0.01

    1m.c.a

    10

    1

    0.1

    1 bar

    100

    10

    1



     DIMENSIONS

    ALCO Motorised Three Way Valve ATV300-01 2
