AJINEXTEK

AJINEXTEK

Motion Chip

Model

Series

Motion Chip


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

ㆍ Single axis pulse type motion control chip
ㆍ Maximum pulse output rate of 5Mpps
ㆍ Support various driving modes of fixed number of pulses, continuous, signal detection, and MPG
ㆍ Support one/two pulse output type
ㆍ Automatic generation of symmetric/asymmetric trapezoid and S-curve velocity profile
ㆍ Built-in 32 bit up/down encoder counter
ㆍ Trigger output function with periodic or random output
ㆍ Synchronization function between axes
ㆍ Script and caption function for real time event processing
ㆍ Provide various interrupt sources of 32 types
ㆍ Velocity and position override function
ㆍ Universal 4/4 channels of input/output
ㆍ Software limit, ring counter, digital filter, and many other useful functions

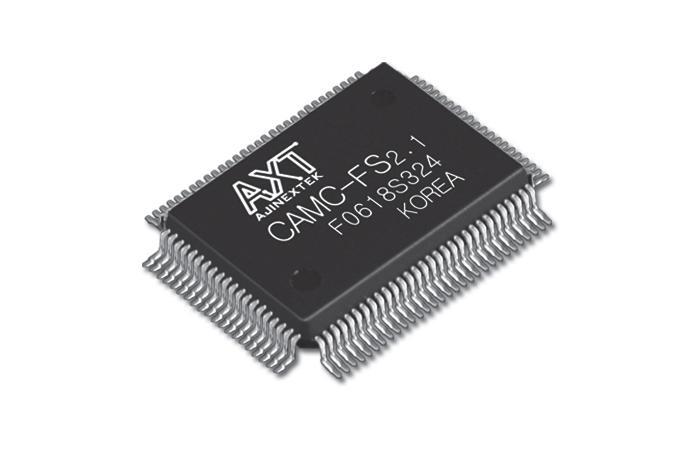

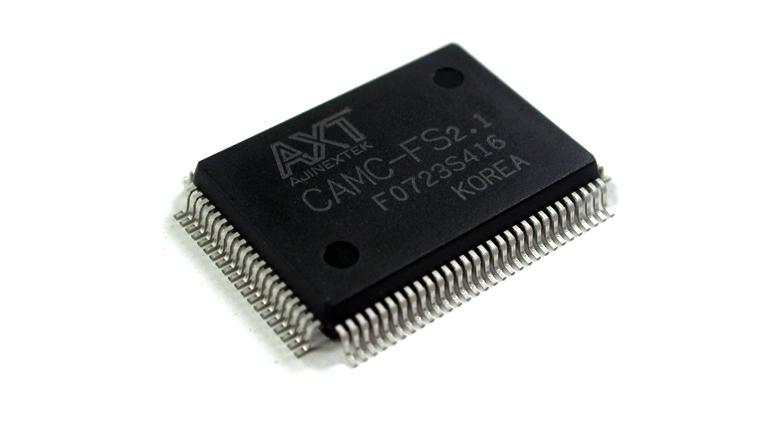

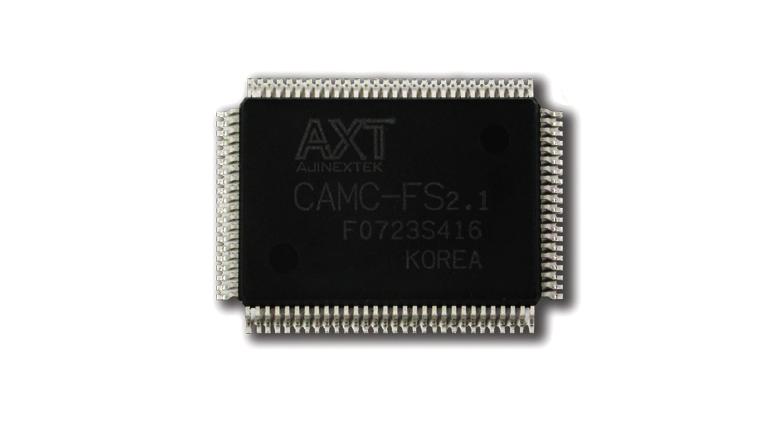

Ajinextek  CAMC-FS

Ajinextek  CAMC-FS 1
