AJINEXTEK

AJINEXTEK

Motion Chip

Model

Series

Motion Chip


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

ㆍ Single axis pulse type motion control chip
ㆍ Maximum pulse output rate of 5Mpps
ㆍ Support various modes drive including fixed pulse numbers, continuous, and signal detection drive
ㆍ Support one/two pulse output type
ㆍ Automatic generation of trapezoid and quasi-S velocity profile
ㆍ Built-in 28 bit up/down encoder counter
ㆍ Limit stop function
ㆍ Synchronization function between axes
ㆍ Velocity and position override function
ㆍ Universal 4/4 channels of input/output

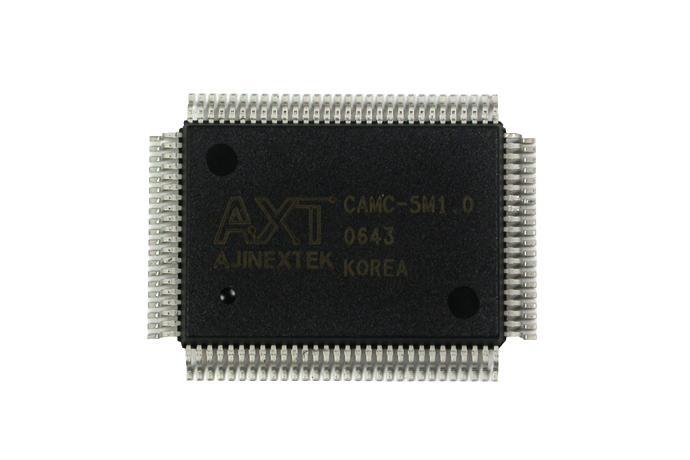

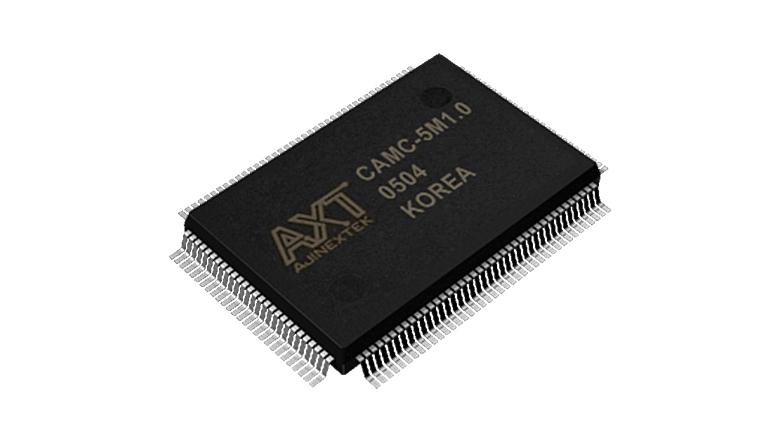

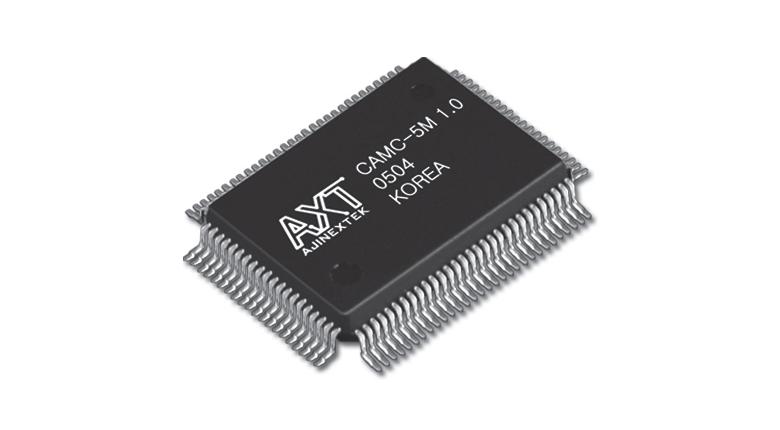

Ajinextek  CAMC-5M

Ajinextek  CAMC-5M 1
