Articulated robots
Model Name

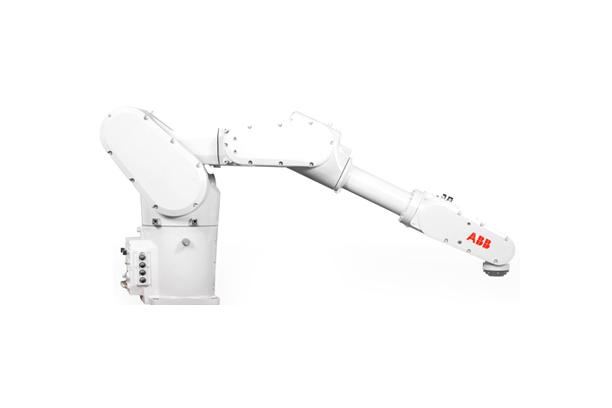

IRB1300
Series
Articulated robots
Data
IRB 1300, brochure, 12-page
Manufacturer information
provider logo
ABBABB is a leading global technology company that energizes the transformation of society and industry to achieve a more productive, sustainable future
Problem with product info?
Update request
Manufacturer
ABB
Brand
-
SKU
125561
Product Name
Articulated robots
Model Name
IRB1300
Size
-
Weight
-
Product Details

Class-leading powerful performance in a compact package
The IRB 1300 offers class-leading lifting ability, reach and path accuracy, in a faster, more compact package to enhance both productivity and production-line flexibility.



High lifting capacity

The IRB 1300 six-axis industrial robot has the reach and lifting capacity to serve high load applications in electronics, general industry, food & beverage, logistics and tier 1 automotive production. Available in three main load/reach versions - 11 kg/0.9 m, 10 kg/1.15 m, and 7 kg/1.4 m - the 11 kg variant offers the highest payload of any robot in its class.


More production in a smaller space

Meeting the need to maximize production capacity while saving on space, the ABB IRB 1300 is nearly 60 percent lighter and one-sixth the footprint of ABB’s IRB 1600 robot. Occupying just 220 mm by 220 mm of floor space, the IRB 1300 enables more robots to be deployed in a given area.


Faster cycle times speed up production

Rapid production is ensured by the IRB 1300’s 27 percent improvement in cycle times. Combined with greater payload and reach, the IRB 1300 can be used for a wide range of tasks in materials handling, machine tending, polishing, and assembly and testing applications.


Advanced motion control

Complex applications such as polishing and machine tending are made possible by ABB’s OmniCore controller, giving the IRB 1300 advanced motion control and best-in-class path accuracy.



Key benefits

Compact : design allows deployment in confined spaces.

Productivity : Up to 27 percent shorter cycle times for increased productivity

Flexibility : 83percent smaller footprint maximizes space utilization.

Quality : Class-leading accuracy for high quality manufacturing.
