A-One Valve

A-One Valve

Solenoid Valve

Model

Series

Accessory


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

SN3101



A-One Valve Solenoid Valve SN/YT Series

Features

■ 5Port pilot type
■ NAMUR interface
■ Compect - lighit weight
■ Mass flow - CV 1.8
■ Effective sectional area - 35.0㎟
■ Excellent endurance



Specification

Model SN4101 (Single coil) SN4201 (Double coil)
Enclosure IP65
Fluids Air & Inter Gases
Pressure (Bar) 1.5 ~ 10 1.0 ~ 10
Ambient Temperature 5 ~ 60℃
Response Time 5c/sec 3c/sec
Lubrication Not required
Rated Voltage AC110V, 220V (50/60Hz), DC24V
Coil Insulation ±10 %

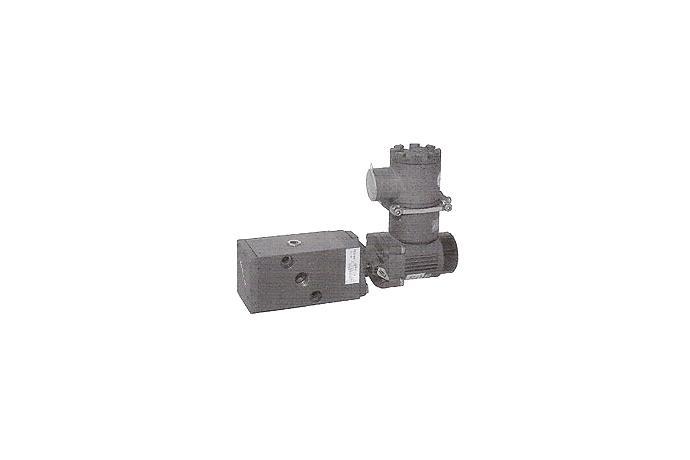

YT-700 Series



A-One Valve Solenoid Valve SN/YT Series 1

Features

■ 5Port pilot type
■ NAMUR interface
■ Large flow capacity with compact design
■ Easy maintenance
■ Exd ⅡC T6 (IP65)



Specification

Model YT-700S (3port 2way) YT-700D (5port 2way)
Enclosure ExdⅡC T6, IP65
Fluids Air & Inter Gases
Pressure (Bar) 0~4, 0~7 1.2~10
Ambient Temperature -20 ~ 70℃
CV Φ1.5, Φ 3 0.75
Lubrication Not required
Rated Voltage AC100V, AC220V (50/60Hz), DC24V
Conduit Connection 1/2" PF
