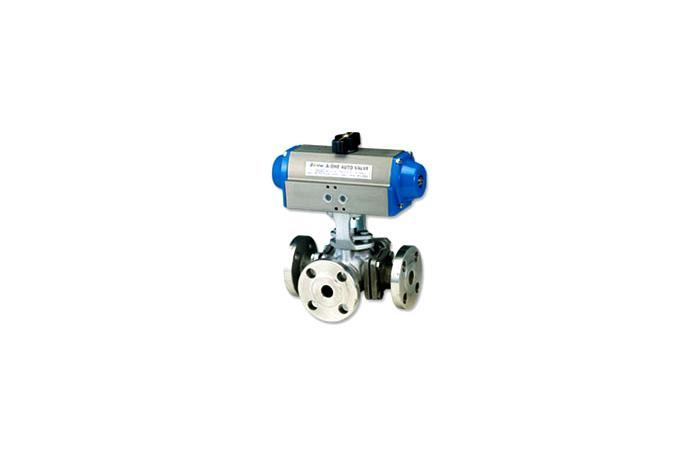

A-One Valve
A-One Valve
Description
■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing
■ Food & Beverage lines
■ Vacuum distribution pipes
| Valve Size | 15A ~ 250A | |||
| Actuator Model | AD50 ~ AD300D | |||
| Actuator Type | Double Acting | |||
| Operating Media | Compressed Dry Air | |||
| Operating Pressure | 4 ~ 7kg/㎠ | |||
| Rotating Angle | 90 ˚ ±3 ˚ | |||
| Fluid Temperature | -10 ~ 90℃ (-10 ~ 150 ℃) | |||
| Rating | JIS 10K (20K) | ANSI 150# (300#) | ||
| Body Material | SUS304 (SUS316)/Body | SUS304 (SUS316)/Ball | PTFE (GRAPHITE)/Seat | |
| Accessory | Solenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner | |||
※ (Option)
■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing
| Valve Size | 10A(3/8") | 15A(1/2") | 20A(3/4") | 25A(1") | 32A(1-1/4") | 40A(1-1/2") | 50A(2") |
| Actuator Model | AD40 | AD50 | AD65 | ||||
| Actuator Type | Double Acting | ||||||
| Operating Media | Compressed Dry Air | ||||||
| Operating Pressure | 4 ~ 7kg/㎠ | ||||||
| Rotating Angle | 90 ˚ ±3 ˚ | ||||||
| Fluid Temperature | -10 ~ 90℃ | ||||||
| Pressure Range | 10kgf/㎠ | ||||||
| Body Material | SUS316/Body | SUS316/Ball | PTFE/Seat | ||||
| Accessory | Solenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner | ||||||
※ (Option)
